Dixon® STC20 STC20

Dixon® STC20

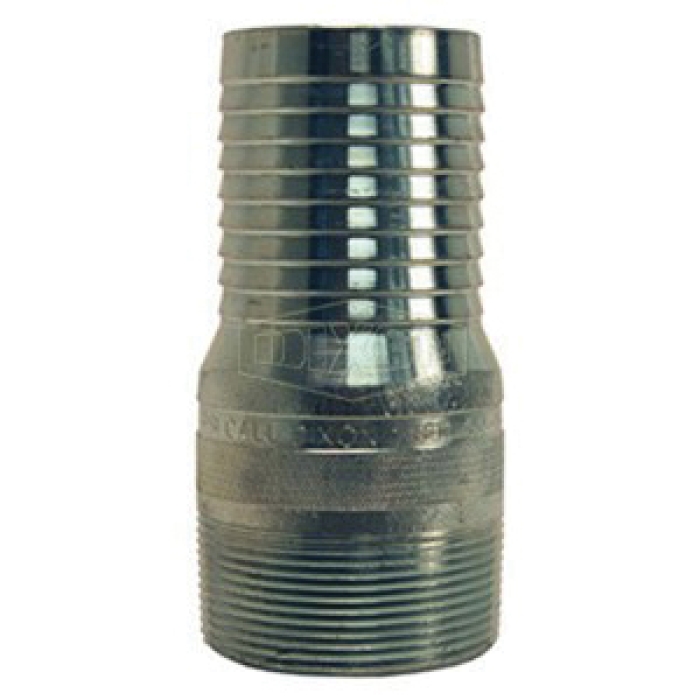

Dixon® King™ STC20 Plated Steel Combination Nipple with Knurled Wrench Grip, 1-1/2 in MNPT x 1-1/2 in Hose

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: STC20
  • MPN: STC20
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® King™ Combination Nipple, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1-1/2 in, Connection Type 2: Hose, Connection Size 2: 1-1/2 in, Material Construction: Steel, Finish: Plated, 1-29/32 in Diameter, 4-5/32 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      NPT
Connection Type 2      :      Hose
Diameter      :      1-29/32 in
Finish      :      Plated
Gender 1      :      Male
Industry Category      :      Marine Industrial Hose Ends~Combination Nipples & Menders
Length      :      4-5/32 in
Material      :      Steel
Material Construction      :      Steel
Shape      :      Nipple
Sub Brand      :      King™
  • NPT threaded end with knurled wrench grip

Applications: For low-pressure discharge and suction service for compatible liquids

Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

    • Complete Your Assembly
