Dixon® M2S3 CP37-44

Dixon® M2S3

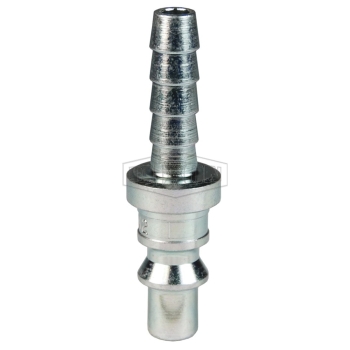

Dixon® M Series Trivalent Chrome-Plated Steel ARO Pneumatic Interchange Plug, 1/4 in Quick Disconnect x 3/8 in Hose Barb

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: CP37-44
  • MPN: M2S3
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® ARO Pneumatic Interchange Plug, Series: M, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 3/8 in, 300 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.56 in OD x 2 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Dimensions      :      0.56 in OD x 2 in L
Finish      :      Trivalent Chrome-Plated
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      300 psi
Series      :      M
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Machined components are manufactured using solid bar stockSteel componentry is plated using RoHS compliant trivalent chromeAutomatic couplings interchanges with ARO 210/310 designs and Hansen Series 210/310Manual couplings interchange with Parker 50 Series and Amflo Type 'B'Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.Consult hose manufacturer's catalog for hose end connection ratings.If in doubt, test under controlled conditions for suitability to application.Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2MS2-PL_CAT.pdf
