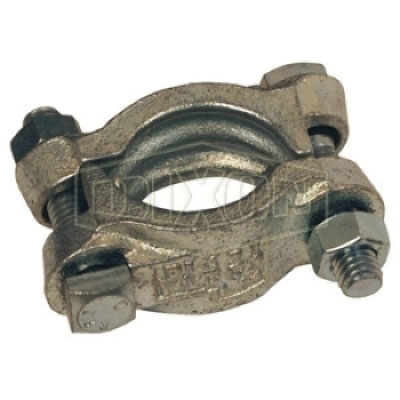

Dixon® DL14 DL14

Dixon® Plated Iron 2-Bolt Clamp

Dixon® DL14 Plated Malleable Iron 2-Bolt Clamp, 1-40/64 in, 3-5/16 in W, 1-7/32 in Thick

  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® 2-Bolt Clamp, 1-40/64 in Maximum Clamp Diameter, 1-40/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 40 ft-lb, Material Construction: Iron, Finish: Plated, 2-27/32 in Length, 3-5/16 in Width, 1-7/32 in Thickness

    California residents see Prop 65 WARNINGS

    Finish      :      Plated
    Length      :      2-27/32 in
    Locking Style      :      Bolt
    Material      :      Malleable Iron
    Material Construction      :      Iron
    Maximum Clamp Diameter      :      1-40/64 in
    Minimum Clamp Diameter      :      1-40/64 in
    Product Type      :      Bolt Clamp
    Thickness      :      1-7/32 in
    Torque Rating      :      40 ft-lb
    Width      :      3-5/16 in
    • Inner surface has dual gripping ridges
    • Bolt lugs are reinforced to prevent bending out of alignment

    Safety Notes: The use of lubricant on bolts will adversely effect clamp performance.

  • Consult Dixon® when using double bolt clamps on helical wire hose.
  • Measure hose OD accurately before ordering clamps.
  • Torque values for clamps are based on dry bolts.
