Dixon® PPA100 PPA100

Dixon® PPA100

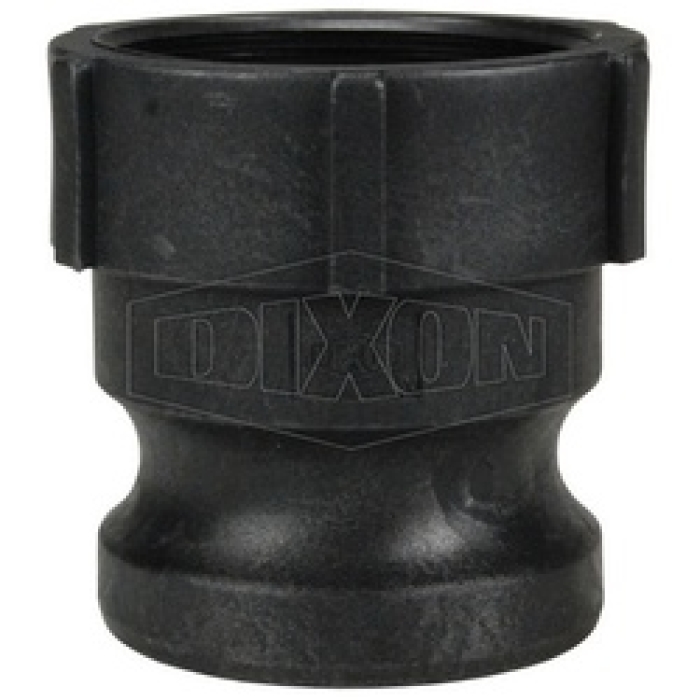

Dixon® PPA100 Cam and Groove Adapter, 1 in Type A x 1 in FNPT, Polypropylene

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: PPA100
  • MPN: PPA100
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Cam and Groove Adapter, Adapter Fitting, 1 in Connection Size 1, Connection Type 1: Type A, 1 in Connection Size 2, Connection Type 2: FNPT, Type A|FNPT Connection, Polypropylene, Material Construction: Polypropylene, 2-5/16 in L x 1-29/32 in W, 125 psi Maximum Operating Pressure, 70 deg F Operating Temperature

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type      :      Type A|FNPT
Connection Type 1      :      Type A
Connection Type 2      :      FNPT
Dimensions      :      2-5/16 in L x 1-29/32 in W
Fitting Type      :      Adapter
Material      :      Polypropylene
Material Construction      :      Polypropylene
Maximum Operating Pressure      :      125 psi
Operating Temperature      :      70 deg F
Manufactured from glass-filled polypropylene
  • Line Drawing https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/DIXON_PPA100_Line_Drawing.pdf
  • Specification Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/DIXON_PPA100_Specification_Sheet.pdf
