Dixon® SCVM12 SCVM12

Dixon® SCVM12

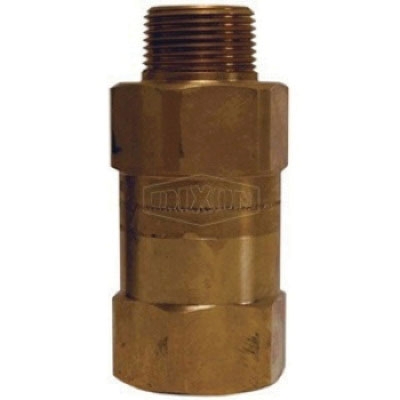

Dixon® SCV Brass Safety Check Valve, 1-1/2 in NPT x Hose, 350 psi, 470 - 530 scfm

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: SCVM12
  • MPN: SCVM12
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Safety Check Valve, Series: SCV, Nominal Size: 1-1/2 in, Connection Type: NPT x Hose, 470 - 530 scfm, Material Construction: Brass, 5-15/32 in Width, 250 deg F, 350 psi

California residents see Prop 65 WARNINGS

Connection Type      :      NPT x Hose
Flow Rate      :      470 - 530 scfm
Material      :      Brass
Material Construction      :      Brass
Nominal Size      :      1-1/2 in
Pressure Rating      :      350 psi
Product Type      :      Check Valve
Series      :      SCV
Temperature Rating      :      250 deg F
Width      :      5-15/32 in
High-flow valve to provide optimum performanceControls excess air flow (SCFM) in only one directionAutomatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whipSolid brass body and valveStainless steel spring and roll pinConforms to OSHA regulation 1926.302 (b) seven requiring a safety device at the source of the air supply and at branch air linesApplications: Used in temporary plant/factory air lines, construction sites, shipyards or utilitiesSafety Notes: Not for use in applications where 100% of the available air is required, i.e. sand blast, pile driving rigs, expansion joint blow down pipes, etc.Does not prevent backflow.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SCVL8_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SCVL8_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SCVL8_TD.pdf
