Dixon® STBC163 DIXSTBC163

Dixon® STBC163

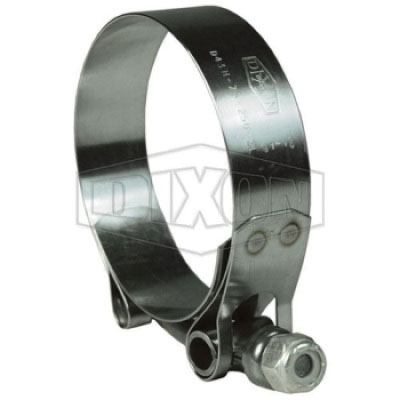

Dixon® STBC 300 Stainless Steel T-Bolt Clamp, 1.63 in, 3/4 in W, 0.025 in Thick

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: DIXSTBC163
  • MPN: STBC163
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® T-Bolt Clamp, Series: STBC, Nominal Size: 1.63 in, 1.69 in Maximum Clamp Diameter, 1.44 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 50 in-lb, Material Construction: 300 Stainless Steel, 3/4 in Width, 0.025 in Thickness

California residents see Prop 65 WARNINGS

Locking Style      :      Bolt
Material      :      Stainless Steel
Material Construction      :      300 Stainless Steel
Maximum Clamp Diameter      :      1.69 in
Minimum Clamp Diameter      :      1.44 in
Nominal Size      :      1.63 in
Product Type      :      T-Bolt Clamp
Series      :      STBC
Thickness      :      0.025 in
Torque Rating      :      50 in-lb
Width      :      3/4 in
300 stainless steel band and boltInstructions: T-bolt clamps can be applied with a standard 7/16 in socket wrench.Safety Notes: Not for use with pneumatic tools.
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_1113R_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STBC1088_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STBC163_TD.pdf
