Dixon® SL050H SL050H

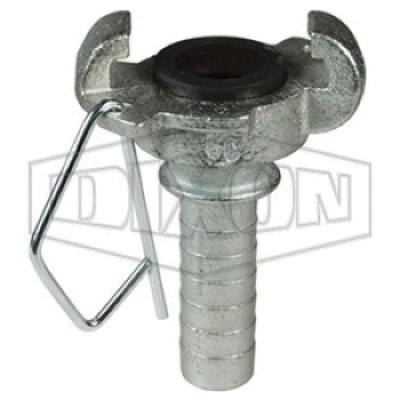

Dixon® Surelock™ Iron Small Head Hose End

Dixon® Surelock™ SL050H Iron Small Head Hose End, 1/2 in Hose

  • ARGPN: SL050H loading
    • Connection Size 1:
  • Add to cart
    Add To Favorites
    • pin-int

    Dixon® Surelock™ Small Head Hose End, Connection Type 1: Hose, Connection Size 1: 1/2 in, 200 psi, Material Construction: Iron, 70 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Type 1      :      Hose
    Material      :      Malleable Iron
    Material Construction      :      Iron
    Pressure Rating      :      200 psi
    Shape      :      Hose End
    Sub Brand      :      Surelock™
    Temperature Rating      :      70 deg F
    • The pressure activated gasket allows easy coupling (less than 15 lb of force is required to connect the coupling) and gaskets seal upon introduction of line pressure
    • AS1831 400-250-12 SG iron body
    • Natural rubber (patent pending) bellow seal
    • Safety pin is supplied with each coupling
    • Natural rubber seal

    Applications: For air service only, commonly used in construction and mining, excels in services where ease, economy, safety and speed are paramount

    Safety Notes: Safety pin is supplied with each coupling and is required as a safety precaution.

  • Pressure rating is based on use with band clamps.
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SL050F_SS.pdf
