Dixon® TM48 TM48

Dixon® TM48

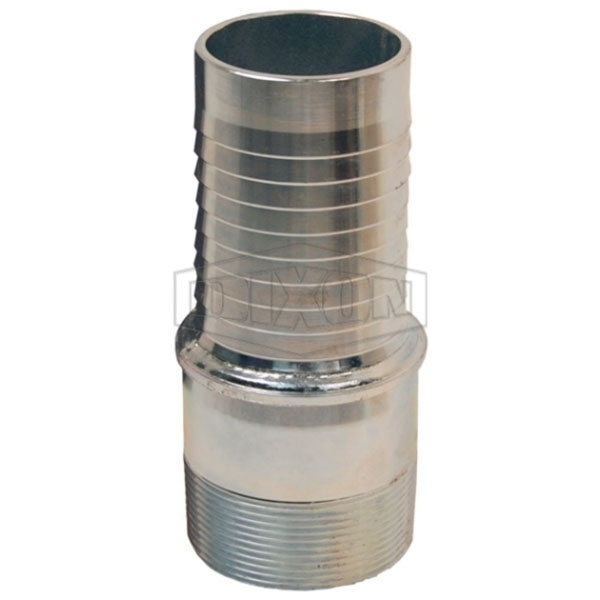

Dixon® TM48 Plated Carbon Steel MNPT Tubular Stem, 3 in

  • Manufacturer: Dixon Valve & Coupling Company, LLC
  • Brand: Dixon®
  • ARGPN: TM48
  • MPN: TM48
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Dixon Valve & Coupling Company, LLC factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Tubular Stem, Connection Type 1: Hose, Connection Size 1: 3 in, Hose Dash Size: 48, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3 in, Nominal Size: 3 in, 600 psi, Material Construction: Carbon Steel, Finish: Plated, For Use With: 1-1/4 - 10 in ID Hose, Dimensions: 7-7/8 in L

California residents see Prop 65 WARNINGS

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type      :      Hose~NPT Male
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Dimensions      :      7-7/8 in L
Finish      :      Plated
Fitting Type      :      Stem
For Use With      :      1-1/4 - 10 in ID Hose
Gender 2      :      Male
Hose Dash Size      :      48
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      3 in
Pressure Rating      :      600 psi
Shape      :      Stem
Tubular-typeThe coupling system requires no bolts and results in a clean coupling with no protrusionsThe Holedall coupling provides long-lasting efficiency and safetySafety Notes: Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon® Holedall products. Do not use a wrench or vice on ferrule. Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure. Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.Consult Dixon® for recommendations on usage. Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.Dixon's die and ferrule recommendation guide is to be used to select correct dies and ferrules.Consult Dixon® if you do not have an updated die and ferrule recommendation guide. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. Media being transported through the hose should be compatible with the stem material.Compatibility of ferrule material with the environment in which it will be used is recommended.Consult the compatibility chart or contact Dixon® for material compatibility. For applications other than the ones list, please consult Dixon.Applications: For use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as: oil and suction discharge hose, barge and dock loading and unloading hose as well as L.P. gas hose, anhydrous ammonia hose, acid chemical hose and air and water hose
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_TM48_SS.pdf
  • Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_TM48_TD.pdf
