Dixon® 6VF6-SS

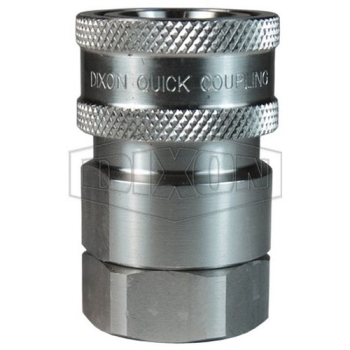

Dixon® V Series 316 Stainless Steel Snap-Tite H/IH Interchange Valved Coupler, 3/4 in Quick Disconnect x 3/4 in FNPTF
- Manufacturer: Dixon Valve & Coupling Company, LLC
- Brand: Dixon®
- ARGPN: 6VF6-SS
- MPN: 6VF6-SS
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Dixon Valve & Coupling Company, LLC factory-direct delivery:
-
Dixon® Snap-Tite H/IH Interchange Valved Coupler, Series: V, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-1/2 in, 2000 psi, Material Construction: 316 Stainless Steel, Dimensions: 1.67 in OD x 2.47 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPTF |
| Gender 2 | : | Female |
| Hex Size | : | 1-1/2 in |
| Industry Category | : | Hydrulic Quick Disconnects |
| Material | : | Stainless Steel |
| Material Construction | : | 316 Stainless Steel |
| Pressure Rating | : | 2000 psi |
| Series | : | V |
| Shape | : | Coupler |
| Thread Size 2 | : | 3/4-14 |
General-purpose hydraulic quick-connect provides superior flow characteristics for a variety of applicationsMachined components are manufactured using solid bar stockStainless steel balls, retaining rings and spring maximize corrosion resistance and extend service lifeSteel componentry is plated using RoHS compliant trivalent chromeSteel coupler sleeves are hardened to resist deformation and maximize service lifeTubular TV valves are constructed from steel bar stock and are designed for optimum performance in pneumatic applicationsNitrile (Buna-N) seals are standardAll couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damageValve O-rings are retained by a unique seal groove profile and are field replaceableInterchangeable to MIL-C-51234Interchangeable with Snap-Tite H/IH Series and Faster TNVApplications: Construction, food service, manufacturing, military, oil field, offshore and petrochemical
