Dixon® V8F8-SS V8F8-SS

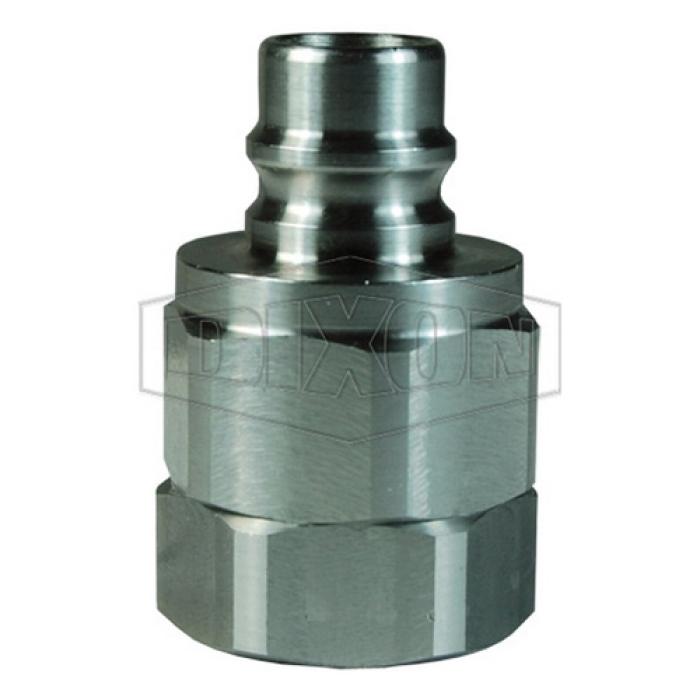

Dixon® V Series 316 Stainless Steel Snap-Tite H/IH Interchange Valved Plug

Dixon® V Series Snap-Tite H/IH Interchange Valved Plug, Quick Disconnect X NPTF, 316 Stainless Steel

  • ARGPN: V8F8-SS loading
pin-int

Dixon® Snap-Tite H/IH Interchange Valved Plug, Series: V, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-7/8 in, 2000 psi, Material Construction: 316 Stainless Steel, Dimensions: 2.06 in OD x 2.6 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Gender 2      :      Female
Hex Size      :      1-7/8 in
Industry Category      :      Hydrulic Quick Disconnects
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      2000 psi
Series      :      V
Shape      :      Plug
Thread Size 2      :      1-11-1/2
General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliabilityMachined components are manufactured using solid bar stockInterchangeable to MIL-C-51234Snap-Tite H and Faster TNVApplications: For construction, food service, manufacturing, military, oil field, offshore and petrochemical
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_1HDP_CAT.pdf
