Dixon® 4VF4

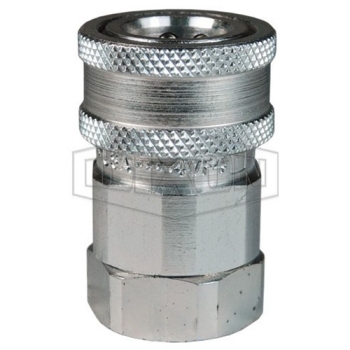

Dixon® V Series Trivalent Chrome-Plated Steel Snap-Tite H/IH Interchange Valved Coupler, 1/2 in Quick Disconnect x 1/2 in FNPTF
- Manufacturer: Dixon Valve & Coupling
- Brand: Dixon®
- ARGPN: 4VF4
- MPN: 4VF4
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Dixon Valve & Coupling factory-direct delivery:
-
Dixon® Snap-Tite H/IH Interchange Valved Coupler, Series: V, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-3/16 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.36 in OD x 2.13 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPTF |
| Dimensions | : | 1.36 in OD x 2.13 in L |
| Finish | : | Trivalent Chrome-Plated |
| Gender 2 | : | Female |
| Hex Size | : | 1-3/16 in |
| Industry Category | : | Hydraulic Quick Disconnects |
| Material | : | Steel |
| Material Construction | : | Steel |
| Pressure Rating | : | 4000 psi |
| Series | : | V |
| Shape | : | Coupler |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 1/2-14 |
- General-purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Tubular TV valves are constructed from steel bar stock and are designed for optimum performance in pneumatic applications
- Nitrile (Buna-N) seals are standard
- All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage
- Valve O-rings are retained by a unique seal groove profile and are field replaceable
- Interchangeable to MIL-C-51234
- Interchangeable with Snap-Tite H/IH Series and Faster TNV
