Gates® 3658-0214 10C5E

Gates® 3658-0214

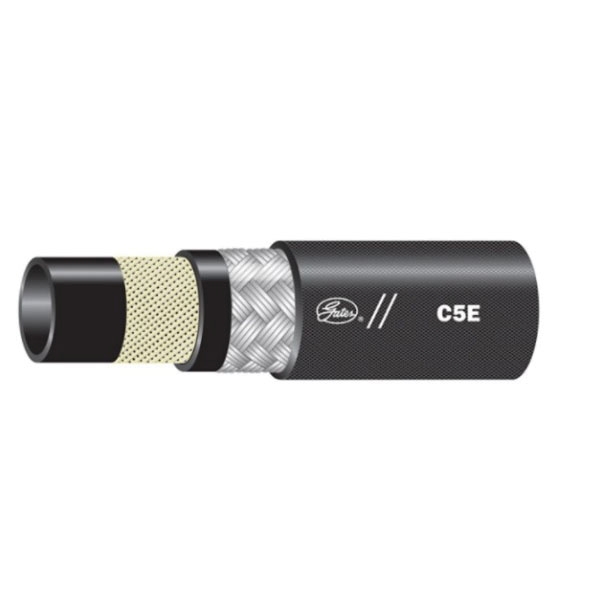

Gates® C5E Black Synthetic Rubber High-Temp Flexline Hydraulic Hose, 1/2 in, 1250 psi

pin-int

Gates® High-Temp Flexline Hydraulic Hose, Series: C5E, Nominal Size: 1/2 in, 0.83 in OD, 1/2 in ID, 1250 psi, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 1-Braid of High-Tensile Steel Wire Over 1-Braid of Polyester, Black, 2.3 in Bend Radius, Resistance Properties: Heat, Oil, -40 deg F Low, 300 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2.3 in
Color      :      Black
Construction      :      1-Braid of High-Tensile Steel Wire Over 1-Braid of Polyester
Cover Material      :      Synthetic Rubber
Inside Diameter      :      1/2 in
Material      :      Synthetic Rubber
Material Construction      :      Synthetic Rubber
Nominal Size      :      1/2 in
Outside Diameter      :      0.83 in
Pressure Rating      :      1250 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Heat, Oil
Series      :      C5E
Temperature High      :      300 deg F
Temperature Low      :      -40 deg F
  • Black, oil and heat-resistant, synthetic rubber (nitrile Type C) tube
  • Black, oil and heat-resistant, textile braid impregnated with synthetic rubber

Applications: For air brake hose, power steering, engine and transmission coolant lines and hot lube oil lines

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_36580214_CAT.pdf
