Gates® 4651-1404 10EFG4K-MTF

Gates® 4651-1404

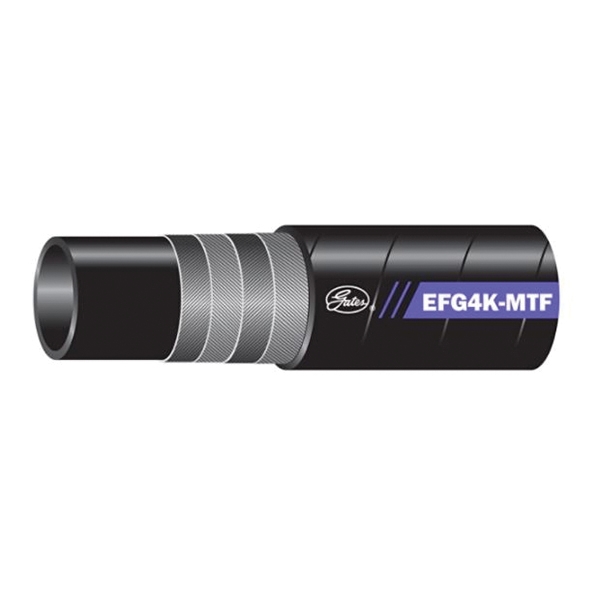

Gates® EFG4K-MTF Black Synthetic Rubber Hydraulic Spiral Hose, 5/8 in, 4000 psi

pin-int

Gates® Hydraulic Spiral Hose, Series: EFG4K-MTF, Nominal Size: 5/8 in, Dash Size: 10, 1.09 in OD, 5/8 in ID, 4000 psi, SAE Rating: SAE 100R12, Material Construction: Synthetic Rubber, MegaTuff® UHMWPE Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 4 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 250 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      4 in
Color      :      Black
Construction      :      4-Alternating Layers of Spiraled, High-Tensile Steel Wire
Cover Material      :      MegaTuff® UHMWPE
Dash Size      :      10
Inside Diameter      :      5/8 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      5/8 in
Outside Diameter      :      1.09 in
Pressure Rating      :      4000 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R12
Series      :      EFG4K-MTF
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
  • EFG4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii
  • With the Gates special MegaTuff® cover which offers 300 times the abrasion-resistant of the standard EFG4K cover as per ISO 6945, superior ozone and weather-resistant
  • Most flexible EN 856 R12/SAE 100R12 hose in the industry
  • 40% of EN 856 4SP bend radius at rated working pressure
  • Validated with GlobalSpiral™
  • Black, oil, abrasion and weather-resistant MegaTuff® with color-coded lay line cover

Applications: For extremely high pressure and high impulse hydraulic applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_36581779_CAT.pdf
