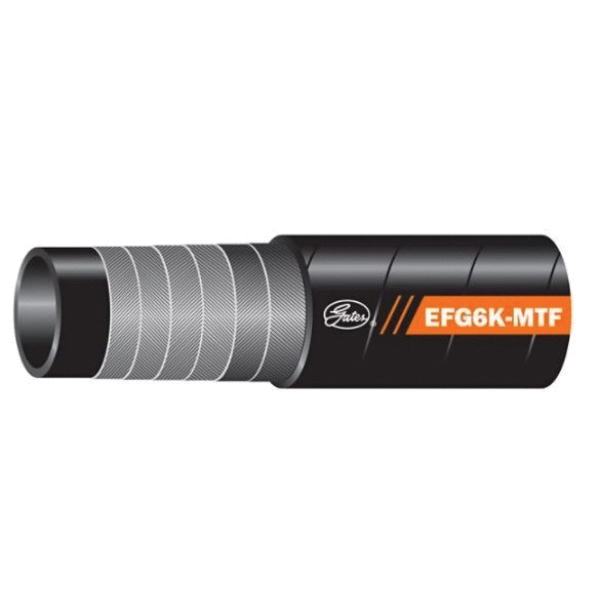

Gates® EFG6K-MTF Black Nitrile Hydraulic Spiral Hose
Gates® EFG6K-MTF Black Synthetic Rubber (Type C Nitrile) Hydraulic Spiral Hose, 1 in, 6000 psi
-
ARGPN: 16EFG6K-MTF
-
-
Nominal Size:
-
Nominal Size:
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Gates Corp factory-direct delivery:
- Sold As: 1/CT
Gates® Hydraulic Spiral Hose, Series: EFG6K-MTF, Nominal Size: 1 in, Dash Size: 16, 1.53 in OD, 1 in ID, 6000 psi, SAE Rating: SAE 100R15, Material Construction: Synthetic Rubber, MegaTuff® Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 6 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 250 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 6 in |
| Color | : | Black |
| Construction | : | 4-Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Cover Material | : | MegaTuff® |
| Dash Size | : | 16 |
| Inside Diameter | : | 1 in |
| Material | : | Nitrile |
| Material Construction | : | Synthetic Rubber |
| Nominal Size | : | 1 in |
| Outside Diameter | : | 1.53 in |
| Pressure Rating | : | 6000 psi |
| Product Type | : | Hydraulic Spiral Hose |
| Resistance Properties | : | Abrasion, Oil, Weather |
| SAE Rating | : | SAE 100R15 |
| Series | : | EFG6K-MTF |
| Temperature High | : | 250 deg F |
| Temperature Low | : | -40 deg F |
- EFG6K hose is compatible with bio-degradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 1000000 impulse cycles at 50% of SAE 100R15 bend radii
- MegaTuff® cover which offers 300 times the abrasion resistance of the standard EFG6K cover as per ISO 6945, superior ozone and weathering-resistant
- MegaTuff® cover offers 300 times the abrasion resistance of standard rubber cover
- -6 to -20 validated with GlobalSpiral™, -24, -32 with GlobalSpiral™ maximum
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
- EFG6K-MTF MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15
- 6000 psi constant pressure for all ID's
- Black, oil, abrasion and weather-resistant MegaTuff® with color coded layline cover
Applications: Extremely high-pressure and high impulse applications such as hydrostatic transmissions
