Gates® 12GS-16MB

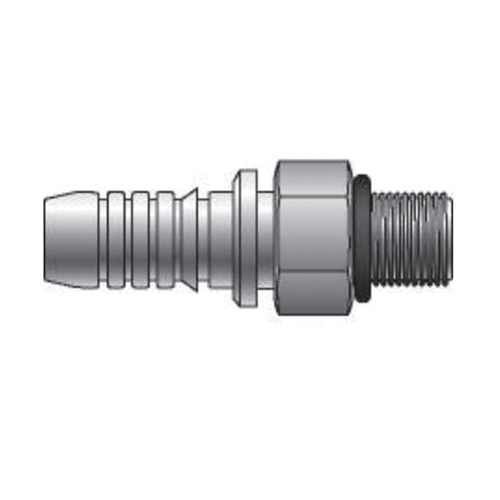

Gates® GlobalSpiral™ 12GS-16MB TuffCoat® Steel Male ORB Crimp Straight Hose Fitting, 3/4 in x 1 in
- Manufacturer: Gates Corp
- Brand: Gates®
- ARGPN: 12GS-16MB
- MPN: 12GS-16MB
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Gates Corp factory-direct delivery:
-
Gates® GlobalSpiral™ Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: ORB, Gender 2: Male, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-1/2 in, 6000 psi, Cut-Off Factor: 1.54 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 3.54 in L, Dimension Standards: SAE J1926/2, ISO 11926-2, 250 deg F
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1 in |
| Connection Type | : | Hose~ORB Male |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | ORB |
| Cut-Off Factor | : | 1.54 in |
| Dimension Standards | : | SAE J1926/2, ISO 11926-2 |
| Dimensions | : | 3.54 in L |
| Finish | : | TuffCoat® |
| Fitting Type | : | Straight Hose Fitting |
| Gender 2 | : | Male |
| Hex Size | : | 1-1/2 in |
| Hose Dash Size | : | 12 |
| Material | : | Steel |
| Material Construction | : | Steel |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 6000 psi |
| Shape | : | Straight |
| Sub Brand | : | GlobalSpiral™ |
| Temperature Rating | : | 250 deg F |
| Thread Size 2 | : | 1-5/16-12 |
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
- Surpasses one million impulse cycles
- One stem used for all spiral hoses
