Gates® 16GS-34FFGX 16GS-34FFGX

Gates® 16GS-34FFGX

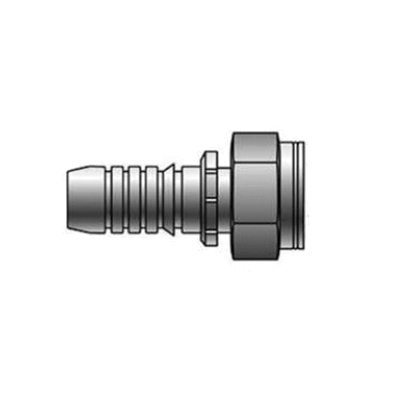

Gates® GlobalSpiral™ 16GS-34FFGX TuffCoat® Steel Female French GAZ Swivel Crimp Straight Hose Fitting, 1 in x 34 mm

  • Manufacturer: Gates Corp
  • Brand: Gates®
  • ARGPN: 16GS-34FFGX
  • MPN: 16GS-34FFGX
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Gates Corp factory-direct delivery: loading
  • Sold As: 1/PK
  • loading
  • Add to cart
    Add To Favorites
pin-int

Gates® GlobalSpiral™ Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: French GAZ Swivel, Gender 2: Female, Connection Size 2: 34 mm, Nominal Size: 34 mm, Thread Size 2: M45 x 1.5, Hex Size: 55 mm, 6000 psi, Cut-Off Factor: 1.54 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 3.76 in L, 250 deg F

Connection Size 1      :      1 in
Connection Size 2      :      34 mm
Connection Type      :      Hose~Other
Connection Type 1      :      Hose
Connection Type 2      :      French GAZ Swivel
Cut-Off Factor      :      1.54 in
Dimensions      :      3.76 in L
Finish      :      TuffCoat®
Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Hex Size      :      55 mm
Hose Dash Size      :      16
Material      :      Steel
Material Construction      :      Steel
Nominal Size      :      34 mm
Pressure Rating      :      6000 psi
Shape      :      Straight
Sub Brand      :      GlobalSpiral™
Temperature Rating      :      250 deg F
Thread Size 2      :      M45 x 1.5

Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

  • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
  • Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
  • Surpasses one million impulse cycles
  • One stem used for all spiral hoses
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
