Gates® 32GSM-32MHU 1502 32GSM-32MHU

Gates® 32GSM-32MHU 1502

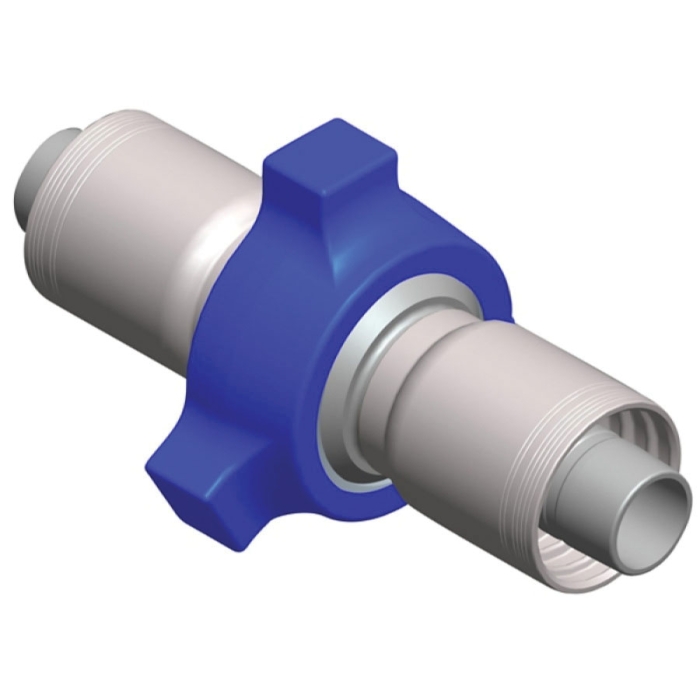

Gates® GlobalSpiral™ Max 32GSM-32MHU 1502 TuffCoat® Steel Male Hammer Union Crimp Straight Hose Fitting, 2 in

  • Manufacturer: Gates Corp
  • Brand: Gates®
  • ARGPN: 32GSM-32MHU
  • MPN: 32GSM-32MHU 1502
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Gates Corp factory-direct delivery: loading
  • Sold As: 1/PK
  • loading
  • Add to cart
    Add To Favorites
pin-int

Gates® GlobalSpiral™ Max Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: Hammer Union, Gender 2: Male, Connection Size 2: 2 in, Nominal Size: 2 in, Material Construction: Steel, Finish: TuffCoat®, 250 deg F

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type      :      Hose~Hammer Union
Connection Type 1      :      Hose
Connection Type 2      :      Hammer Union
Finish      :      TuffCoat®
Fitting Type      :      Straight Hose Fitting
Gender 2      :      Male
Hose Dash Size      :      32
Material      :      Steel
Material Construction      :      Steel
Nominal Size      :      2 in
Shape      :      Straight
Sub Brand      :      GlobalSpiral™ Max
Temperature Rating      :      250 deg F

2 in no-skive coupling design for high-pressure spiral wire hose. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system.

  • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
  • Coated with TuffCoat® plating, more than five times better corrosion-resistant than SAE ASTM B117 specification
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
