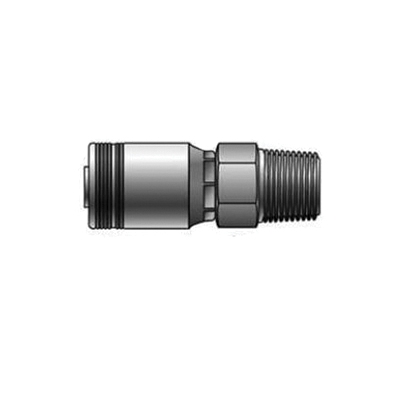

Gates® GlobalSpiral™ Max TuffCoat® Steel Male 30 deg Cone Seat NPTF Crimp Straight Hose Fitting
Gates® GlobalSpiral™ Max 32GSM-32MP TuffCoat® Steel Male 30 deg Cone Seat NPTF Crimp Straight Hose Fitting, 2 in
-
ARGPN: 32GSM-32MP
-
-
Connection Size 1:
-
Connection Size 2:
-
Nominal Size:
-
Connection Size 1:
Gates® GlobalSpiral™ Max Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: 30 deg Cone Seat NPTF, Gender 2: Male, Connection Size 2: 2 in, Nominal Size: 2 in, Thread Size 2: 2-11-1/2, Hex Size: 2-3/4 in, 6000 psi, Cut-Off Factor: 3.05 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 7.54 in L, 250 deg F
| Connection Size 1 | : | 2 in |
| Connection Size 2 | : | 2 in |
| Connection Type | : | Hose~NPT Male |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | 30 deg Cone Seat NPTF |
| Cut-Off Factor | : | 3.05 in |
| Dimensions | : | 7.54 in L |
| Finish | : | TuffCoat® |
| Fitting Type | : | Straight Hose Fitting |
| Gender 2 | : | Male |
| Hex Size | : | 2-3/4 in |
| Hose Dash Size | : | 32 |
| Material | : | Steel |
| Material Construction | : | Steel |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 6000 psi |
| Shape | : | Straight |
| Sub Brand | : | GlobalSpiral™ Max |
| Temperature Rating | : | 250 deg F |
| Thread Size 2 | : | 2-11-1/2 |
2 in no-skive coupling design for high-pressure spiral wire hose. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Coated with TuffCoat® plating, more than five times better corrosion-resistant than SAE ASTM B117 specification
