Gates® 8GS-15FDLORX 8GS-15FDLORX

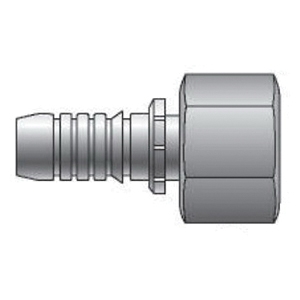

Gates® GlobalSpiral™ TuffCoat® Steel Female DIN Light 24 deg Cone Swivel Crimp Straight Hose Fitting with O-Ring

Gates® GlobalSpiral™ 8GS-15FDLORX TuffCoat® Steel Female DIN Light 24 deg Cone Swivel Crimp Straight Hose Fitting with O-Ring, 1/2 in x 15 mm

  • ARGPN: 8GS-15FDLORX loading
  • Add to cart
    Add To Favorites
    • pin-int

    Gates® GlobalSpiral™ Crimp Straight Hose Fitting with O-Ring, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: DIN Light 24 deg Cone Swivel, Gender 2: Female, Connection Size 2: 15 mm, Nominal Size: 15 mm, Thread Size 2: M22 x 1.5, Hex Size: 22 mm, 6000 psi, Cut-Off Factor: 1.4 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 2.87 in L, Dimension Standards: ISO Draft International Standards 12151-2, 250 deg F

    Connection Size 1      :      1/2 in
    Connection Size 2      :      15 mm
    Connection Type      :      Hose~DIN Light Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      DIN Light 24 deg Cone Swivel
    Cut-Off Factor      :      1.4 in
    Dimension Standards      :      ISO Draft International Standards 12151-2
    Dimensions      :      2.87 in L
    Finish      :      TuffCoat®
    Fitting Type      :      Straight Hose Fitting
    Gender 2      :      Female
    Hex Size      :      22 mm
    Hose Dash Size      :      08
    Material      :      Steel
    Material Construction      :      Steel
    Nominal Size      :      15 mm
    Pressure Rating      :      6000 psi
    Shape      :      Straight
    Sub Brand      :      GlobalSpiral™
    Temperature Rating      :      250 deg F
    Thread Size 2      :      M22 x 1.5

    Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

    • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
    • Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
    • Surpasses one million impulse cycles
    • One stem used for all spiral hoses
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
