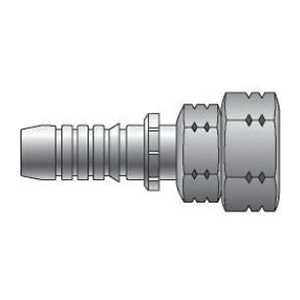

Gates® GlobalSpiral™ TuffCoat® Steel Female Komatsu Swivel Crimp Straight Hose Fitting
Gates® GlobalSpiral™ 8GS-8FKX TuffCoat® Steel Female Komatsu Swivel Crimp Straight Hose Fitting, 1/2 in x 22 mm
-
ARGPN: 8GS-8FKX
-
-
Connection Size 1:
-
Connection Size 2:
-
Nominal Size:
-
Connection Size 1:
Gates® GlobalSpiral™ Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: Komatsu Swivel, Gender 2: Female, Connection Size 2: 22 mm, Nominal Size: 22 mm, Thread Size 2: M22 x 1.5, Hex Size: 27 mm, 6000 psi, Cut-Off Factor: 1.46 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 2.93 in L, 250 deg F
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 22 mm |
| Connection Type | : | Hose~Komatsu Female Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Komatsu Swivel |
| Cut-Off Factor | : | 1.46 in |
| Dimensions | : | 2.93 in L |
| Finish | : | TuffCoat® |
| Fitting Type | : | Straight Hose Fitting |
| Gender 2 | : | Female |
| Hex Size | : | 27 mm |
| Hose Dash Size | : | 08 |
| Material | : | Steel |
| Material Construction | : | Steel |
| Nominal Size | : | 22 mm |
| Pressure Rating | : | 6000 psi |
| Shape | : | Straight |
| Sub Brand | : | GlobalSpiral™ |
| Temperature Rating | : | 250 deg F |
| Thread Size 2 | : | M22 x 1.5 |
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
- Surpasses one million impulse cycles
- One stem used for all spiral hoses
- These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style
