Gates® 16GS-16MP 16GS-16MP

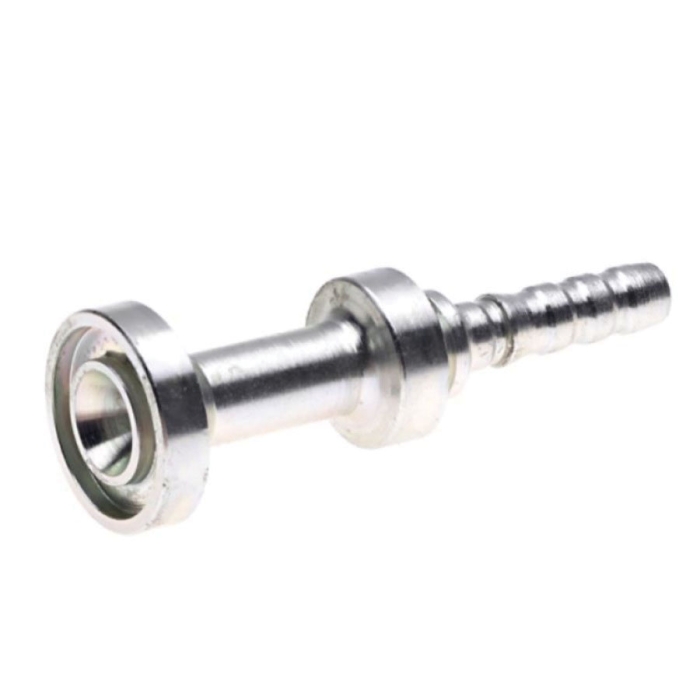

Gates® GlobalSpiral™ TuffCoat® Steel Male 30 deg Cone Seat NPTF Crimp Straight Hose Fitting

Gates® GlobalSpiral™ 16GS-16MP TuffCoat® Steel Male 30 deg Cone Seat NPTF Crimp Straight Hose Fitting, 1 in

  • Add to cart
    Add To Favorites
    • pin-int

    Gates® GlobalSpiral™ Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: 30 deg Cone Seat NPTF, Gender 2: Male, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-3/8 in, 6000 psi, Cut-Off Factor: 1.94 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 4.17 in L, 250 deg F

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type      :      Hose~NPT Male
    Connection Type 1      :      Hose
    Connection Type 2      :      30 deg Cone Seat NPTF
    Cut-Off Factor      :      1.94 in
    Dimensions      :      4.17 in L
    Finish      :      TuffCoat®
    Fitting Type      :      Straight Hose Fitting
    Gender 2      :      Male
    Hex Size      :      1-3/8 in
    Hose Dash Size      :      16
    Material      :      Steel
    Material Construction      :      Steel
    Nominal Size      :      1 in
    Pressure Rating      :      6000 psi
    Shape      :      Straight
    Sub Brand      :      GlobalSpiral™
    Temperature Rating      :      250 deg F
    Thread Size 2      :      1-11-1/2

    Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

    • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
    • Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
    • Surpasses one million impulse cycles
    • One stem used for all spiral hoses
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
