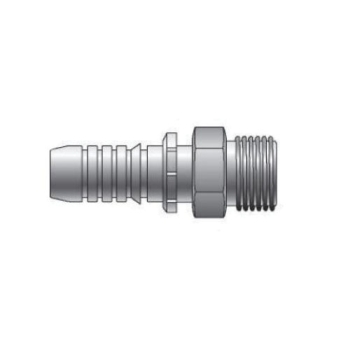

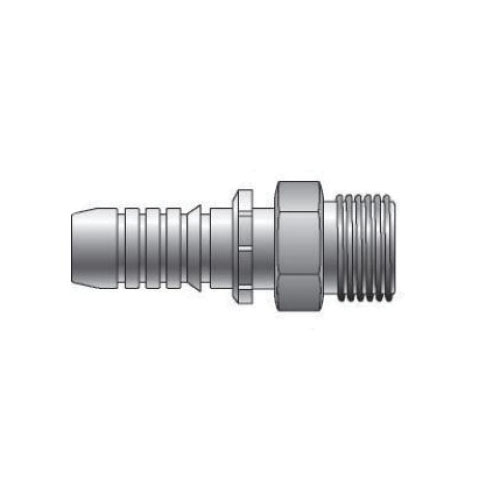

Gates® GlobalSpiral™ TuffCoat® Steel Male DIN Light 24 deg Cone Crimp Straight Hose Fitting
Gates® GlobalSpiral™ 16GS-28MDL TuffCoat® Steel Male DIN Light 24 deg Cone Crimp Straight Hose Fitting, 1 in x 28 mm
-
ARGPN: 16GS-28MDL
-
-
Connection Size 1:
-
Connection Size 2:
-
Nominal Size:
-
Connection Size 1:
Gates® GlobalSpiral™ Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: DIN Light 24 deg Cone, Gender 2: Male, Connection Size 2: 28 mm, Nominal Size: 28 mm, Thread Size 2: M36 x 2, Hex Size: 41 mm, 6000 psi, Cut-Off Factor: 1.31 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 3.54 in L, Dimension Standards: ISO Draft International Standards 12151-2, 250 deg F
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 28 mm |
| Connection Type | : | Hose~DIN Light Male |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | DIN Light 24 deg Cone |
| Cut-Off Factor | : | 1.31 in |
| Dimension Standards | : | ISO Draft International Standards 12151-2 |
| Dimensions | : | 3.54 in L |
| Finish | : | TuffCoat® |
| Fitting Type | : | Straight Hose Fitting |
| Gender 2 | : | Male |
| Hex Size | : | 41 mm |
| Hose Dash Size | : | 16 |
| Material | : | Steel |
| Material Construction | : | Steel |
| Nominal Size | : | 28 mm |
| Pressure Rating | : | 6000 psi |
| Shape | : | Straight |
| Sub Brand | : | GlobalSpiral™ |
| Temperature Rating | : | 250 deg F |
| Thread Size 2 | : | M36 x 2 |
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
- Surpasses one million impulse cycles
- One stem used for all spiral hoses
