Gates® 8G-14FDHORX45 8G-14FDHORX45

Gates® 8G-14FDHORX45

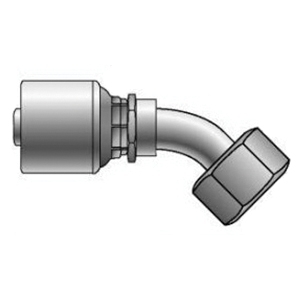

Gates® MegaCrimp® 8G-14FDHORX45 TuffCoat® Female DIN Heavy 24 deg Cone Swivel Crimp Hose 45 deg Elbow with O-Ring, 1/2 in x 14 mm

  • Manufacturer: Gates Corp
  • Brand: Gates®
  • ARGPN: 8G-14FDHORX45
  • MPN: 8G-14FDHORX45
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Gates Corp factory-direct delivery: loading
  • Sold As: 1/PK
  • loading
  • Add to cart
    Add To Favorites
pin-int

Gates® MegaCrimp® Crimp Hose 45 deg Elbow with O-Ring, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: DIN Heavy 24 deg Cone Swivel, Gender 2: Female, Connection Size 2: 14 mm, Nominal Size: 14 mm, Thread Size 2: M22 x 1.5, Hex Size: 27 mm, Cut-Off Factor: 2.12 in, Finish: TuffCoat®

Connection Size 1      :      1/2 in
Connection Size 2      :      14 mm
Connection Type      :      Hose~DIN Heavy Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      DIN Heavy 24 deg Cone Swivel
Cut-Off Factor      :      2.12 in
Finish      :      TuffCoat®
Fitting Type      :      45 deg Elbow
Gender 2      :      Female
Hex Size      :      27 mm
Hose Dash Size      :      08
Nominal Size      :      14 mm
Shape      :      45 deg Elbow
Sub Brand      :      MegaCrimp®
Thread Size 2      :      M22 x 1.5

MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.

  • One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
  • MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
  • Surpassed one million impulse cycles during design testing
  • Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf

Complete Your Assembly
