Gates® 12G-12MS 12G-12MS

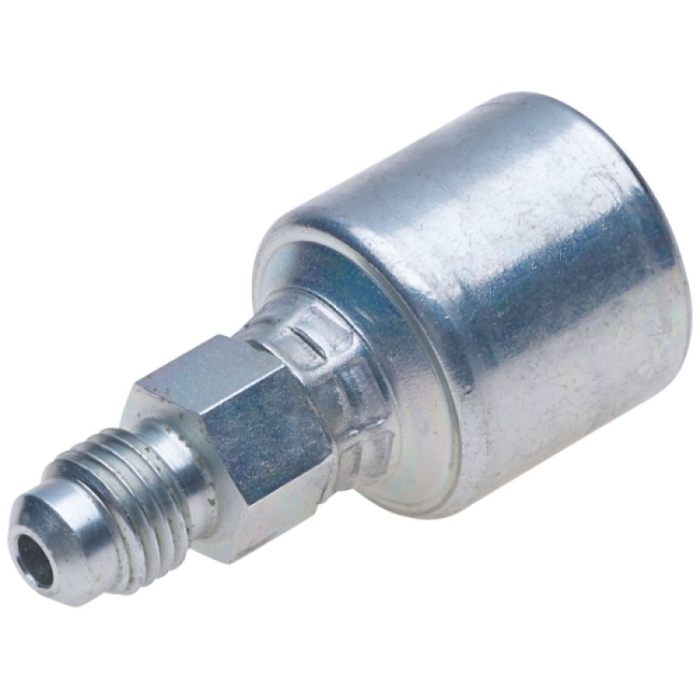

Gates® MegaCrimp® TuffCoat® Male SAE 45 deg Flare Crimp Straight Hose Fitting

Gates® MegaCrimp® 12G-12MS TuffCoat® Male SAE 45 deg Flare Crimp Straight Hose Fitting, 3/4 in

  • ARGPN: 12G-12MS loading
  • Add to cart
    Add To Favorites
    • pin-int

    Gates® MegaCrimp® Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: SAE 45 deg Flare, Gender 2: Male, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-14, Hex Size: 1-1/16 in, Cut-Off Factor: 1.77 in, Finish: TuffCoat®, Dimensions: 3.78 in L

    Connection Size 1      :      3/4 in
    Connection Size 2      :      3/4 in
    Connection Type      :      Hose~SAE Male
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 45 deg Flare
    Cut-Off Factor      :      1.77 in
    Dimensions      :      3.78 in L
    Finish      :      TuffCoat®
    Fitting Type      :      Straight Hose Fitting
    Gender 2      :      Male
    Hex Size      :      1-1/16 in
    Hose Dash Size      :      12
    Nominal Size      :      3/4 in
    Shape      :      Straight
    Sub Brand      :      MegaCrimp®
    Thread Size 2      :      1-1/16-14

    MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.

    • One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
    • MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
    • Surpassed one million impulse cycles during design testing
    • Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
