Gates® 8C5E-8RFJSX 8C5E-8RFJSX

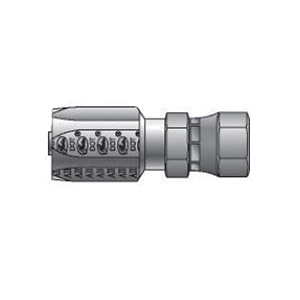

Gates® Steel Female SAE 45 deg/37 deg JIC Swivel DOT Type A2 Field Attachable Reusable Straight Hose Fitting

Gates® 8C5E-8RFJSX Steel Female SAE 45 deg/37 deg JIC Swivel DOT Type A2 Field Attachable Reusable Straight Hose Fitting, 13/32 in x 1/2 in

  • ARGPN: 8C5E-8RFJSX loading
    • Connection Size 1:
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Gates® DOT Type A2 Field Attachable Reusable Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 13/32 in, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 7/8 in, Cut-Off Factor: 1.45 in, Material Construction: Steel, For Use With: Gates C5C, C5CXH, C5D and C5M Hoses, Dimensions: 2.45 in L

    Connection Size 1      :      13/32 in
    Connection Size 2      :      1/2 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
    Cut-Off Factor      :      1.45 in
    Dimensions      :      2.45 in L
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      Gates C5C, C5CXH, C5D and C5M Hoses
    Gender 2      :      Female
    Hex Size      :      7/8 in
    Material      :      Steel
    Material Construction      :      Steel
    Nominal Size      :      1/2 in
    Shape      :      Straight
    Thread Size 2      :      3/4-16

    Our D.O.T. Type A2 field attachable couplings work with Gates C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
