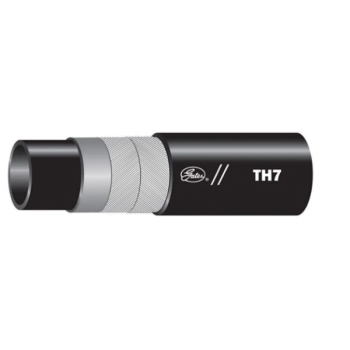

Gates® 4467-1196 16TH7

Gates® TH7 Black Nylon Hydraulic Hose

Gates® TH7 Black Type Z Nylon Hydraulic Hose, 1 in, 1000 psi

pin-int

Gates® Hydraulic Hose, Series: TH7, Nominal Size: 1 in, Dash Size: 16, 1.32 in OD, 1 in ID, 1000 psi, SAE Rating: SAE 100R7, Material Construction: Type Z Nylon, Urethane Cover, Construction: Synthetic Fiber, Black, 8 in Bend Radius, Resistance Properties: Aging, High-Temperature, Weathering, -65 deg F Low, 200 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      8 in
Color      :      Black
Construction      :      Synthetic Fiber
Cover Material      :      Urethane
Dash Size      :      16
Inside Diameter      :      1 in
Material      :      Nylon
Material Construction      :      Type Z Nylon
Nominal Size      :      1 in
Outside Diameter      :      1.32 in
Pressure Rating      :      1000 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Aging, High-Temperature, Weathering
SAE Rating      :      SAE 100R7
Series      :      TH7
Temperature High      :      200 deg F
Temperature Low      :      -65 deg F

High-pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others.

  • Validated with MegaCrimp®
  • Black urethane cover that resists hydraulic fluids, high-temperatures, aging and weathering
  • Black TH7 cover is perforated for use in general hydraulic and pneumatic service cover
  • 100% seamless nylon, type Z that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol
  • TH7 hose meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius

Applications: For power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery
