Hydraulics™ 9S20J20-PF20 9S20J20-PF20

Hydraulics™ 9S20J20-PF20

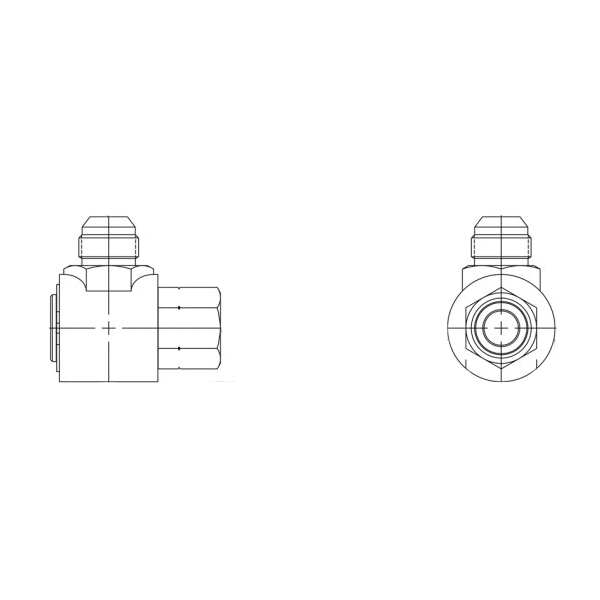

Hydraulics™ 9S Series Zinc-Plated Carbon Steel 90 deg Pressure Balanced Swivel, 1-1/4 in Male 37 deg JIC Flare x 1-1/4 in FNPTF

  • Manufacturer: Hydraulics Inc
  • Brand: Hydraulics™
  • ARGPN: 9S20J20-PF20
  • MPN: 9S20J20-PF20
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Hydraulics Inc factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hydraulics™ 90 deg Pressure Balanced Swivel, Series: 9S, Connection Type 1: 37 deg JIC Flare, Gender 1: Male, Connection Size 1: 1-1/4 in, Thread Size 1: 1-5/8-12, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1-1/4 in, Thread Size 2: 1-1/4-11-1/2, Hex Size: 2 x 2 in, 4000 psi, Material Construction: Carbon Steel, Finish: Zinc-Plated, Dimensions: 4.18 in W x 3.9 in H, -30 to 250 deg F

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      37 deg JIC Flare
Connection Type 2      :      NPTF
Dimensions      :      4.18 in W x 3.9 in H
Finish      :      Zinc-Plated
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      2 x 2 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      4000 psi
Series      :      9S
Shape      :      Swivel Fitting
Temperature Rating      :      -30 to 250 deg F
Thread Size 1      :      1-5/8-12
Thread Size 2      :      1-1/4-11-1/2

The "9S" Series swivels represent one of the most complete range of sizes and configurations available to industry. This Series has been redesigned to incorporate a one piece barrel arrangement thus eliminating the need for braze joints. These swivels are pressure balanced with operating pressures up to 5000 psi. All configurations are designed with a 4:1 safety factor and include RoHS compliant zinc plating.

  • Protective treatment - zinc plating with yellow chromate RoHS compliant finish
  • One-piece investment cast barrel - no braze joint
  • Standard O-ring and back-up ring - field replaceable seal kits
  • Burnished barrel bore for extended seal life
  • Recessed and protected dust seals
  • Pressure balanced for low rotational torque
  • Heavy-duty retainer ring
  • Excellent flow characteristics
