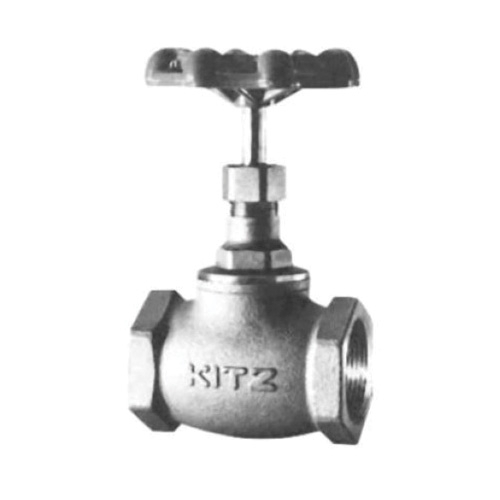

KITZ Cast Bronze Globe Valve

KITZ 01-100 Cast Bronze Globe Valve, 1 in FNPT, 150 psi WOG, 100 psi WSP

  • ARGPN: GLOBE100 loading
  • Add to cart
  • KITZ Globe Valve, Nominal Size: 1 in, Connection Type: FNPT, Actuator Type: Hand Wheel, Material Construction: Cast Bronze, Forged Brass Bonnet, Disc and Locknut, Brass Stem and Gland Trim, Flow Coefficient: 7.4 Cv, 2.48 in Length, 3.7 in Height, 406 deg F, 150 psi WOG, 100 psi WSP, Packaging Quantity: 48 CN

    California residents see Prop 65 WARNINGS

    Actuator Type      :      Hand Wheel
    Connection Type      :      FNPT
    Flow Coefficient      :      7.4 Cv
    Height      :      3.7 in
    Length      :      2.48 in
    Material      :      Bronze
    Material Construction      :      Cast Bronze
    Nominal Size      :      1 in
    Packaging Quantity      :      48 CN
    Pressure Rating      :      150 psi WOG, 100 psi WSP
    Product Type      :      Globe Valve
    Temperature Rating      :      406 deg F
    Trim Material      :      Forged Brass Bonnet, Disc and Locknut, Brass Stem and Gland
    • Metal-to-metal seat
    • Screwed bonnet
    • Zinc-die cast hand wheel material, carbon steel wheel nut, aluminum name plate
