Tigerflex® W-PS1000X40 WPS1000

Tigerflex® W-PS1000X40

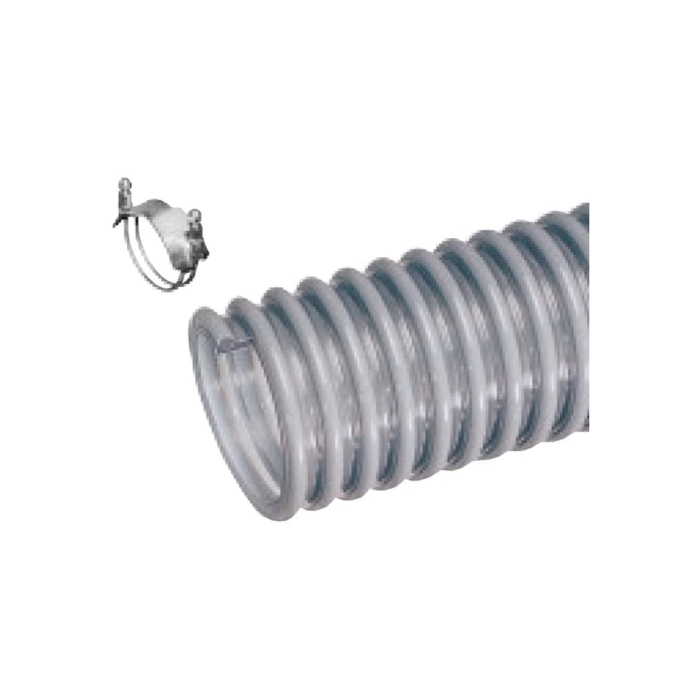

Kuriyama Tigerflex® W™ Clear PVC Heavy-Duty Liquid Suction Hose, 10 in, 1 ftL, 25 psi

pin-int

Kuriyama Tigerflex® Heavy-Duty Liquid Suction Hose, Series: W™ Nominal Size: 10 in, 11.57 in OD, 10 in ID, 1 ft Length, 25 psi, Material Construction: PVC, Construction: PVC Tube with Rigid PVC Helix, Clear, 39 in Bend Radius, -40 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      39 in
Color      :      Clear
Construction      :      PVC Tube with Rigid PVC Helix
Inside Diameter      :      10 in
Length      :      40 ft
Material      :      PVC
Material Construction      :      PVC
Nominal Size      :      10 in
Outside Diameter      :      11.57 in
Pressure Rating      :      25 psi
Product Type      :      Suction Hose
Series      :      W™
Sub Brand      :      Tigerflex®
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
  • Cold-Flex materials hose remains flexible in sub-zero temperatures
  • Transparent construction - see-the-flow allows for visual confirmation of material flow
  • Convoluted outer cover provides increased hose flexibility
  • Phthalate-free
  • Made in USA

Standards/Certifications: Prop 65 Compliant|RoHS EU 2002/95/EC Compliant

Applications: Extreme cold conditions, fish suction, gold dredging, heavy-duty water suction, pumps, rental and construction dewatering, slurry handling and trash

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_W-PS1000X40_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_W-PS1000X40_SS.pdf
