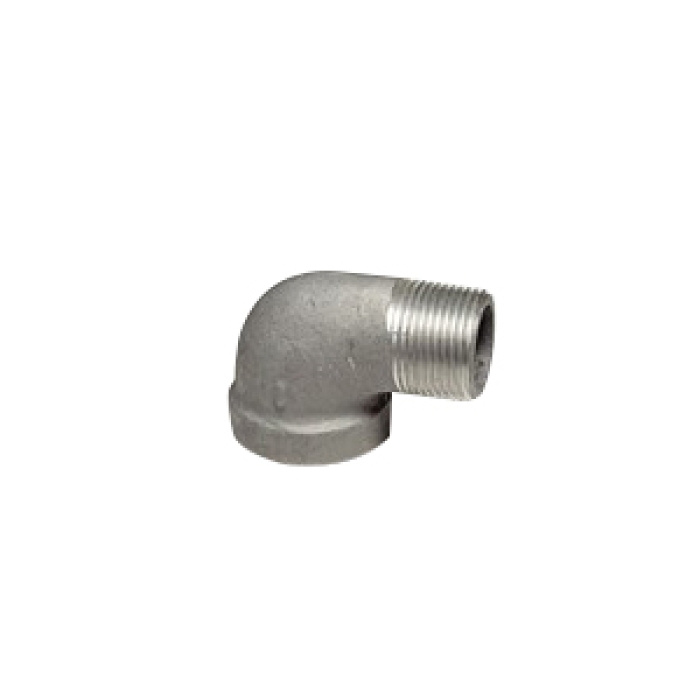

Latrobe Foundry AL90S025 356-F Aluminum 90 deg Short Radius Street Elbow, 1/4 in MNPT x 1/4 in FNPT

  • Manufacturer: Latrobe Foundry Machine & Supply
  • Brand: Latrobe Foundry
  • ARGPN: AL90S025
  • MPN: AL90S025
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Latrobe Foundry Machine & Supply factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Latrobe Foundry 90 deg Short Radius Street Elbow, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1/4 in, Thread Size 1: 1/4-18, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, 150 lb, Material Construction: 356-F Aluminum, Dimension Standards: ASME B1.20.1, MIL-DTL-52618-E

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Dimension Standards      :      ASME B1.20.1, MIL-DTL-52618-E
Gender 1      :      Male
Gender 2      :      Female
Material      :      Aluminum
Material Construction      :      356-F Aluminum
Pressure Rating      :      150 lb
Shape      :      90 deg Elbow
Thread Size 1      :      1/4-18
Thread Size 2      :      1/4-18
  • Fittings are right hand threaded
  • The fittings have a general conformance with dimensional standard MIL-DTL-52618-E
  • Fittings are random tested at 120 lb of air pressure under water, for a normal surface condition rating of 150 lb of pressure
  • Individual fittings are not marked with alloy or pressure data
  • Fittings are not anodized
  • All threaded elbows are short radius
