Crosby® 1039931 1039931

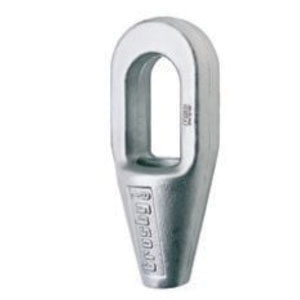

McKissick® G-417 Galvanized Forged Steel Closed Spelter Socket

McKissick® G-417 Closed Spelter Socket, Galvanized, Forged Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Crosby® Closed Spelter Socket, Series: G-417, 7/16 - 1/2 in Cable, 1.16 in Eye Inside Diameter, Load Capacity: 20 ton, Material Construction: Forged Steel, Finish: Galvanized, 5-1/2 in Length, 2 in Width, For Use With: 6 x 7, 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope

    Cable Size      :      7/16 - 1/2 in
    Eye Inside Diameter      :      1.16 in
    Finish      :      Galvanized
    For Use With      :      6 x 7, 6 x 19 or 6 x 37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC Wire Rope
    Length      :      5-1/2 in
    Load Capacity      :      20 ton
    Material      :      Steel
    Material Construction      :      Forged Steel
    Product Type      :      Spelter Socket
    Series      :      G-417
    Width      :      2 in
    • Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope
    • Strand constructed with minimal number of wires (1 x 7) requires special consideration that socket basket length be five-times the strand diameter or 50-times the wire diameter, whichever is the greater

    Warranty: 1 Year Limited

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1039655_CAT.pdf
