MIDLAND INDUSTRIES 20035 PCB66-4-4

MIDLAND INDUSTRIES 20035

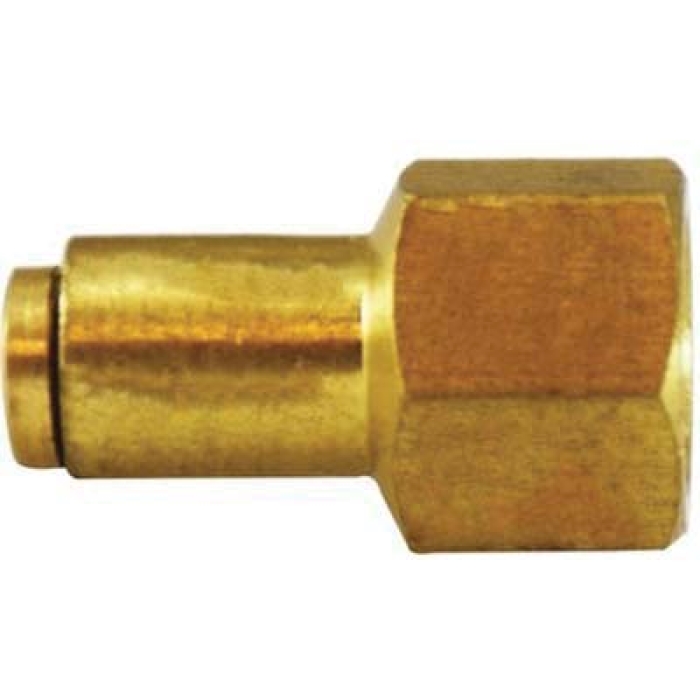

MIDLAND INDUSTRIES 20035 Brass Straight Connector, 1/4 in Push-to-Connect x 1/4 in FNPTF

  • Manufacturer: Midland Industries
  • Brand: MIDLAND INDUSTRIES
  • ARGPN: PCB66-4-4
  • MPN: 20035
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Midland Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

MIDLAND INDUSTRIES Straight Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 3/4 in, Material Construction: Brass, Dimensions: 1.42 in L, -10 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      NPTF
Dimensions      :      1.42 in L
Gender 2      :      Female
Hex Size      :      3/4 in
Material      :      Brass
Material Construction      :      Brass
Shape      :      Straight Connector
Temperature Rating      :      -10 to 200 deg F
  • Quick-connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
  • Quick-disconnect, hold two fingers on insert and pull tubing out, no tools required
  • Reusable, connect and disconnect numerous times
  • Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
  • Positive seal, no leaks, after tubing is inserted, seal is made
  • Secure tube retention, pulling on tubing only serves to tighten the connection
  • Self contained assembly, no loose parts, brass body and insert
  • NPTF with Teflon®-based sealant pre-applied
  • Straight connectors have interior hex for Allen key tightening where space is limited, no need to use a wrench
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
