MIDLAND INDUSTRIES 20076 PCB69S-2.5-0

MIDLAND INDUSTRIES 20076

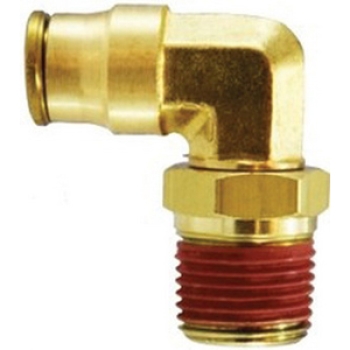

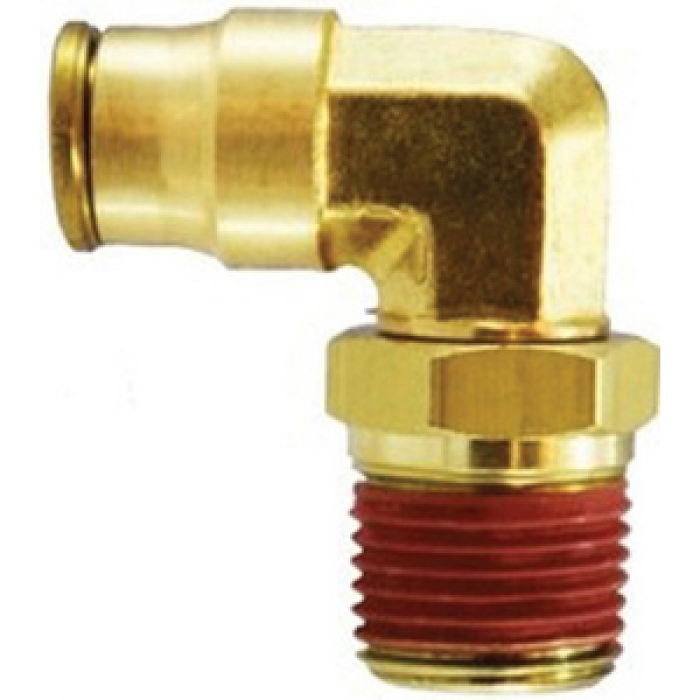

MIDLAND INDUSTRIES 20076 Brass 90 deg Elbow, 5/32 in Push-to-Connect x 10-32 MNPTF Swivel

  • Manufacturer: Midland Industries
  • Brand: MIDLAND INDUSTRIES
  • ARGPN: PCB69S-2.5-0
  • MPN: 20076
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Midland Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

MIDLAND INDUSTRIES 90 deg Elbow, Connection Type 1: Push-to-Connect, Connection Size 1: 5/32 in, Connection Type 2: NPTF Swivel, Gender 2: Male, Connection Size 2: 10-32, Hex Size: 0.37 in, 290 psi, Material Construction: Brass, -10 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      5/32 in
Connection Size 2      :      10-32
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      NPTF Swivel
Gender 2      :      Male
Hex Size      :      0.37 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      290 psi
Shape      :      90 deg Elbow
Temperature Rating      :      -10 to 200 deg F
  • Quick connect, simply push tubing in, no tools
  • Saves up to 75% of assembly time compared to standard air compression fittings
  • Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
  • Reusable, connect and disconnect numerous times
  • Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
  • Positive seal, no leaks
  • After tubing is inserted, seal is made
  • Versatile, Buna-N O-rings standard
  • Secure tube retention, pulling on tubing only serves to tighten the connection
  • Self contained assembly, no loose parts, brass body and insert
  • Pre-applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
  • Furnished with gaskets
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
