MIDLAND INDUSTRIES 691006 PCD69-10-6

MIDLAND INDUSTRIES 691006

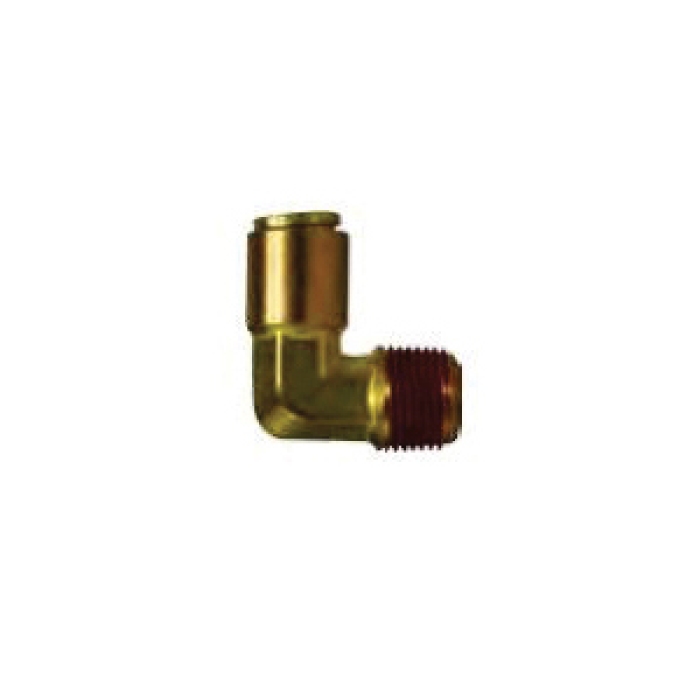

MIDLAND INDUSTRIES 691006 Forged Brass 90 deg Elbow, 5/8 in Push-In x 3/8 in MNPTF

  • Manufacturer: Midland Industries
  • Brand: MIDLAND INDUSTRIES
  • ARGPN: PCD69-10-6
  • MPN: 691006
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Midland Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

MIDLAND INDUSTRIES 90 deg Elbow, Connection Type 1: Push-In, Connection Size 1: 5/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/8 in, 150 psi, Material Construction: Forged Brass, -40 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      5/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Push-In
Connection Type 2      :      NPTF
Gender 2      :      Male
Material      :      Brass
Material Construction      :      Forged Brass
Pressure Rating      :      150 psi
Shape      :      90 deg Elbow
Temperature Rating      :      -40 to 200 deg F

DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon®-based pipe sealant to provide for easy assembly and leak-proof seal.

  • Simply push tubing in, no tools required
  • Saves up to 75% of assembly time compared to standard air compression fittings
  • No loose parts to handle
  • Hold the collet collar with two fingers and pull out tube
  • Can be connected and disconnected several times
  • Using recommended tubing, full sealing is guaranteed
  • Buna-N O-ring standard
  • Secure tube retention
  • Pulling on tubing only serves to tighten the connection
  • Pre applied Teflon based pipe sealant on all male pipe threads, saving customer additional labor
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
