MIDLAND INDUSTRIES 20018 PCB62-2.5

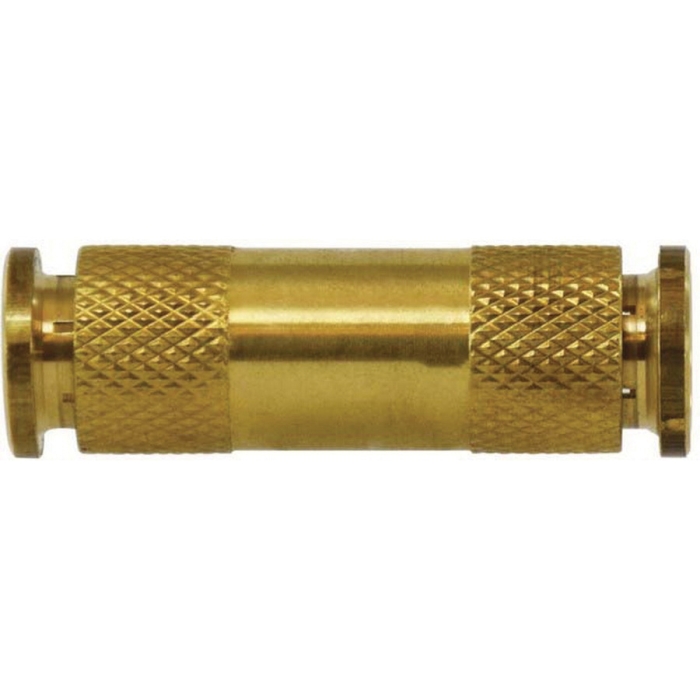

Midland Industries Brass Union Connector

Midland Industries Union Connector, Push-to-Connect X Push-to-Connect, Brass

pin-int

MIDLAND INDUSTRIES Union Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 5/32 in, Connection Type 2: Push-to-Connect, Connection Size 2: 5/32 in, Material Construction: Brass, Dimensions: 0.38 in W, -10 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      5/32 in
Connection Size 2      :      5/32 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      Push-to-Connect
Dimensions      :      0.38 in W
Material      :      Brass
Material Construction      :      Brass
Shape      :      Connector
Temperature Rating      :      -10 to 200 deg F
  • Quick-connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
  • Quick-disconnect, hold two fingers on insert and pull tubing out, no tools required
  • Reusable, connect and disconnect numerous times
  • Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
  • Positive seal, no leaks, after tubing is inserted, seal is made
  • Secure tube retention, pulling on tubing only serves to tighten the connection
  • Self contained assembly, no loose parts, brass body and insert
  • NPTF with Teflon®-based sealant pre-applied
  • Straight connectors have interior hex for Allen key tightening where space is limited, no need to use a wrench
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
