MIDLAND INDUSTRIES 44529 BRBU200X100

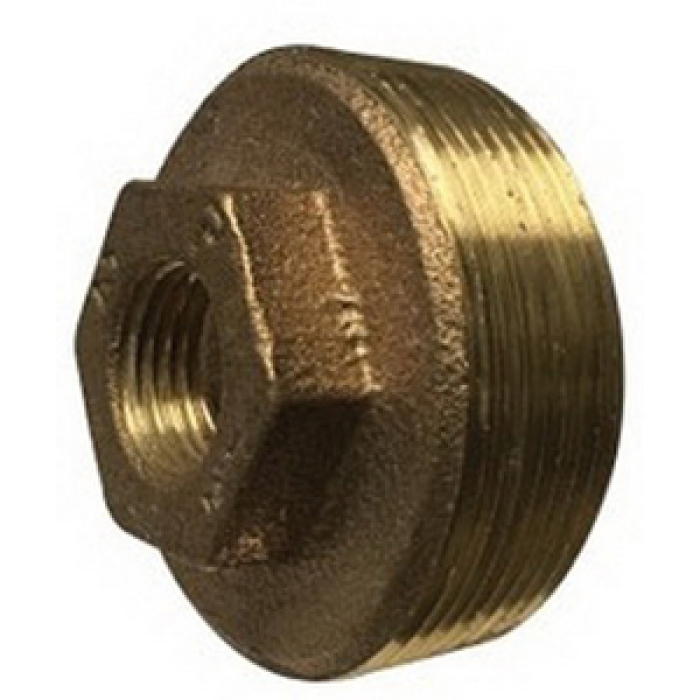

Midland Industries Bronze Inside Hex Bushing

Midland Industries Inside Hex Bushing, NPT X NPT, Bronze, 150 psi

  • Add to cart
    Add To Favorites
    • pin-int

    MIDLAND INDUSTRIES Inside Hex Bushing, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Hex Size: 1.95 in, 150 psi, Material Construction: Bronze, Dimensions: 1.29 in L, Dimension Standards: ANSI B16.15, ANSI B2.1 or BA 21, Federal Specification WW-P-460C, MSS-SP-106, ANSI/ASME B1.20.1

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      2 in
    Connection Size 2      :      1 in
    Connection Type 1      :      NPT
    Connection Type 2      :      NPT
    Dimension Standards      :      ANSI B16.15, ANSI B2.1 or BA 21, Federal Specification WW-P-460C, MSS-SP-106, ANSI/ASME B1.20.1
    Dimensions      :      1.29 in L
    Gender 1      :      Male
    Gender 2      :      Female
    Hex Size      :      1.95 in
    Material      :      Brass
    Material Construction      :      Bronze
    Pressure Rating      :      150 psi
    Shape      :      Hex Bushing

    Bronze threaded fittings are manufactured from smooth-cored castings, designed to provide full flow with minimum restriction. All threads are accurately machined and gauged to ensure a perfect fit with the pipe. All fittings are individually tested under water to ensure quality. Bronze provides a tighter seal and is easier to install than other metals. Can be used for water, plumbing, heating, pneumatic and marine applications, able to resist the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils.

    Applications: For steam, water, gas, oil and air service

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
