MIDLAND INDUSTRIES 64395 GVCR100

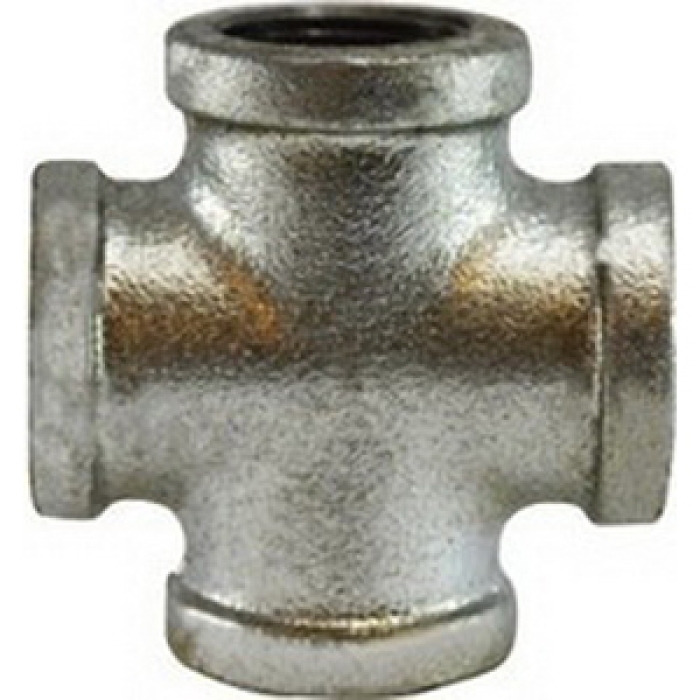

Midland Industries Galvanized Malleable Iron Cross

Midland Industries Cross, NPT X NPT X NPT X NPT, Galvanized, Malleable Iron, 150 lb

  • Add to cart
    Add To Favorites
    • pin-int

    MIDLAND INDUSTRIES Cross, Connection Type 1: NPT, Connection Size 1: 1 in, Connection Type 2: NPT, Connection Size 2: 1 in, Connection Type 3: NPT, Connection Size 3: 1 in, Connection Type 4: NPT, Connection Size 4: 1 in, 150 lb, Material Construction: Malleable Iron, Finish: Galvanized, Dimensions: 3 in L, Dimension Standards: ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1, -20 to 350 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Size 3      :      1 in
    Connection Size 4      :      1 in
    Connection Type 1      :      NPT
    Connection Type 2      :      NPT
    Connection Type 3      :      NPT
    Connection Type 4      :      NPT
    Dimension Standards      :      ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1
    Dimensions      :      3 in L
    Finish      :      Galvanized
    Material      :      Malleable Iron
    Material Construction      :      Malleable Iron
    Pressure Rating      :      150 lb
    Shape      :      Cross
    Temperature Rating      :      -20 to 350 deg F

    Our quality fittings are made with care and attention to detail. With better molds we can reduce parting lines and rough edges resulting in better fluid flow. By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting.

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
