OPW® 66SB-7575 66SB-7575

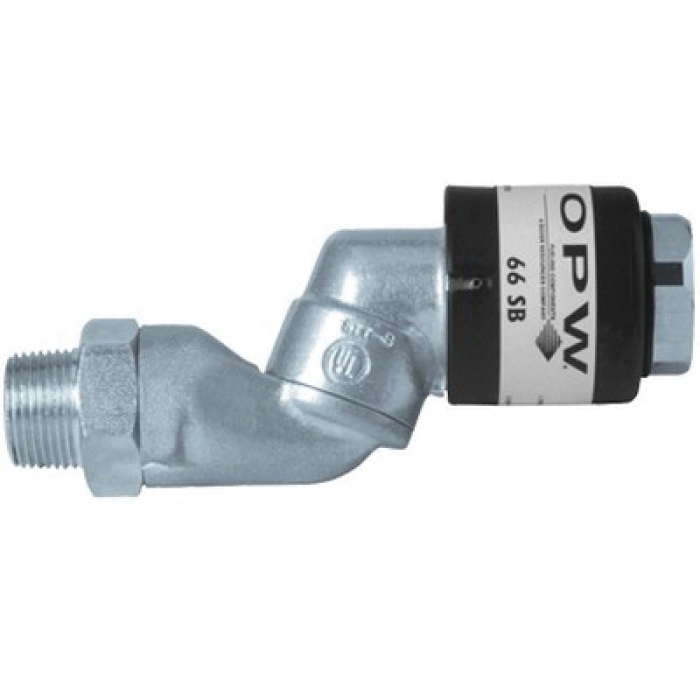

OPW® Midland 66SB Aluminum Reconnectable Swivel Breakaway

OPW® Midland 66SB Reconnectable Swivel Breakaway, NPT, Aluminum, 50 psi

  • Add to cart
    Add To Favorites
    • pin-int

    OPW® Midland Reconnectable Swivel Breakaway, Series: 66SB, Size: 3/4 x 3/4 in, Material Construction: Aluminum, Connection Type: NPT, 50 psi

    Connection Type      :      NPT
    Material      :      Aluminum
    Material Construction      :      Aluminum
    Pressure Rating      :      50 psi
    Product Type      :      Reconnectable Breakaway
    Series      :      66SB
    Size      :      3/4 x 3/4 in
    Sub Brand      :      Midland

    The OPW® 66SB swivel breakaway is intended for easy installation at the nozzle inlet. The compact, lightweight design incorporates a 360 deg swivel rotation at both the male end and middle joint, with a simple and easily-reconnectable breakaway on the opposite end.

    • UL and ULc listed for use in gasoline, diesel and up to 10% ethanol blends
    • Pull force - the 66SB will break away with a pull force of no more than 350 lb
    • Easily reconnected at waist height after relieving line pressure, simply push coupling halves together until latched, reconnection force is approximately 15 lb
    • Protected coupling and poppet - the breakaway's poppet and sealing surface are protected from impact during separation by a plastic sleeve
    • Reduces connections - the single-unit design replaces the standard swivel, breakaway and whip hose, eliminating possible leak points
    • Double O-ring seal both swivel joints are protected by a double O-ring design
    • Poppet/nylon/HDPE sleeve, PTFE seal, stainless steel spring
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_H09214_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_66SB-1010_SS.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_66SB-7575_II.pdf
