Prevost® RPD MG4126 PCC68-4-0

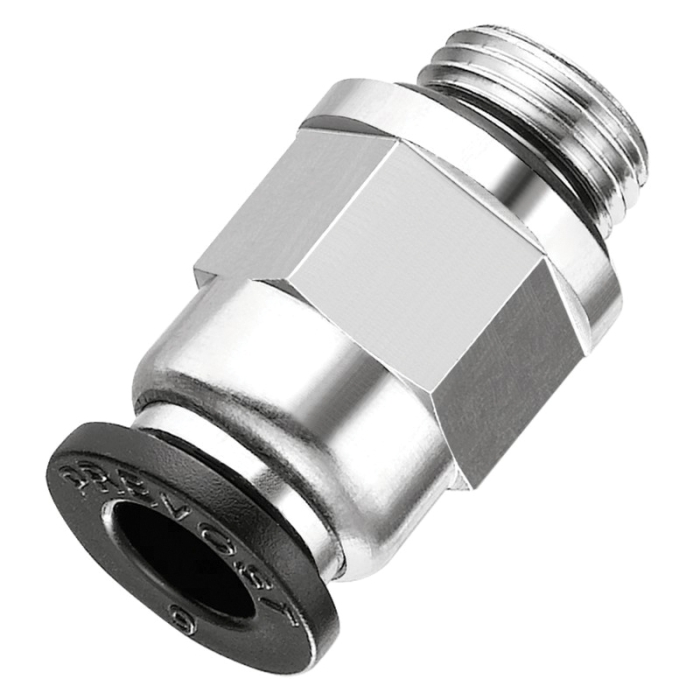

Prevost® RPD MG Nickel-Plated Brass/Polymer Straight Connector

Prevost® RPD MG Straight Connector, Push-to-Connect X Threaded, Nickel-Plated, Brass/Polymer, 0 - 145 psi

  • ARGPN: PCC68-4-0 loading
pin-int

Prevost® Straight Connector, Series: RPD MG, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: Threaded, Gender 2: Male, Connection Size 2: #10, Thread Size 2: 10-32 UNF, 0 - 145 psi, Material Construction: Brass/Polymer, Finish: Nickel-Plated, Dimensions: 0.945 in L x 0.157 in W, 32 - 140 deg F, For Use With: 1/4 in OD Tubing

Connection Size 1      :      1/4 in
Connection Size 2      :      #10
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      Threaded
Dimensions      :      0.945 in L x 0.157 in W
Finish      :      Nickel-Plated
For Use With      :      1/4 in OD Tubing
Gender 2      :      Male
Material      :      Brass
Material Construction      :      Brass/Polymer
Pressure Rating      :      0 - 145 psi
Series      :      RPD MG
Shape      :      Straight Connector
Temperature Rating      :      32 - 140 deg F
Thread Size 2      :      10-32 UNF
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Prevost_Corporation_RPD_MG5326_SS.pdf
