PT® Coupling 64543000 PF30C SS

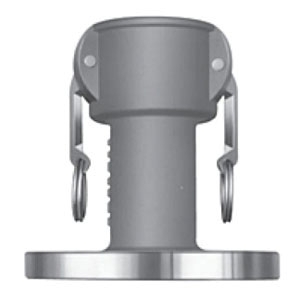

PT Coupling Stainless Steel Female Type C x Flange Cam and Groove Pipe Flange

PT® Coupling64543000 Stainless Steel Cam and Groove Pipe Flange, 3 in Female Type C x 3 in Flange

  • ARGPN: PF30C SS loading
    • Connection Size 1:
    • Connection Size 2:
pin-int

PT® CouplingCam and Groove Pipe Flange, Connection Type 1: Type C, Gender 1: Female, Connection Size 1: 3 in, Connection Type 2: Flange, Connection Size 2: 3 in, 200 psi, Material Construction: Stainless Steel, Dimensions: 7.5 in OD x 5.82 in L, Dimension Standards: ANSI B16.5 Class 150, -150 deg F

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type 1      :      Type C
Connection Type 2      :      Flange
Dimension Standards      :      ANSI B16.5 Class 150
Dimensions      :      7.5 in OD x 5.82 in L
Gender 1      :      Female
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Pressure Rating      :      200 psi
Shape      :      Flange
Temperature Rating      :      -150 deg F
  • Made in USA
  • Raised face

Warranty: Limited

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_54907104_CAT.pdf
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_64543000_SS.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_54907104_II.pdf
  • Warranty PDF https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/PT_Coupling_54007108_W.pdf
