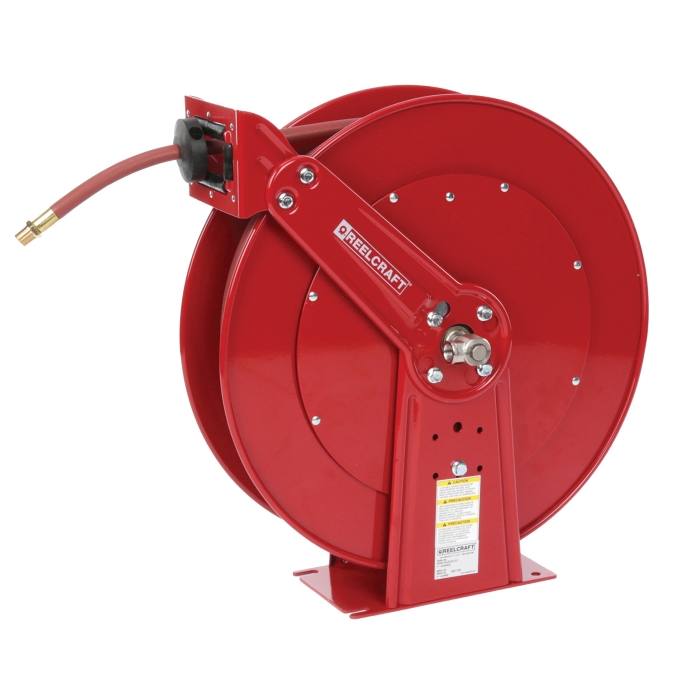

Reelcraft® 80000 Red Powder-Coated Carbon Steel Low Pressure Dual Pedestal Air Hose Reel

Reelcraft® Low Pressure Dual Pedestal Air Hose Reel, Series: 80000, 50 ft Length Hose, 3/4 in Hose Inside Diameter, 1.06 in Hose Outside Diameter, Inlet Size: 3/4 in FPT, Outlet Size: 3/4 in MPT, Winding Method: Spring Retractable, Material Construction: Carbon Steel, Finish: Powder-Coated, Red, Bench, Ceiling, Floor, Truck, Wall Mount, 212 deg F, 300 psi, Dimensions: 25-3/8 in L x 24 in W x 10-1/2 in H, Includes: Hose

California residents see Prop 65 WARNINGS

Reelcraft®'s Series 80000 and D80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy-duty applications. Series D80000 reels are also supplied with Reelcraft®'s ball-bearing style swivel.

• Reinforced steel - the steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight
• The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
• The full flow swivel combines the highest-grade seal design and materials with bearing areas to insure maximum service life
• Quality finish and corrosion-resistant - individually powder-coated components along with the composite spool offers the maximum protection from premature corrosion
• Open style

Applications: For heavy-duty applications

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_7850_OLP_CAT_NEW2021.pdf
• Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_82100_OLP_II.pdf
• Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_83050_OLP_TD.pdf
