Stucchi PPC0608FO

Stucchi PPC Carbon Flat Face Coupler, 3/8 in Push-Pull x 1/2 in Female SAE ORB

Manufacturer: Stucchi USA
Brand: Stucchi
ARGPN: PPC0608FO

MPN: PPC0608FO

Available for Pickup - Anchorage, AK Branch: Click here
Available for Shipping:
Available for Stucchi USA factory-direct delivery:
Add to cart
Add To Favorites

Description
Specs
Features
Documents

Stucchi Flat Face Coupler, Series: PPC, Connection Type 1: Push-Pull, Connection Size 1: 3/8 in, Connection Type 2: SAE ORB, Gender 2: Female, Connection Size 2: 1/2 in, Up to 5000 psi, Material Construction: Carbon, Dimension Standards: ISO 16028

Connection Size 1	:	3/8 in
Connection Size 2	:	1/2 in
Connection Type 1	:	Push-Pull
Connection Type 2	:	SAE ORB
Dimension Standards	:	ISO 16028
Gender 2	:	Female
Material	:	Steel
Material Construction	:	Carbon
Pressure Rating	:	Up to 5000 psi
Series	:	PPC
Shape	:	Coupler

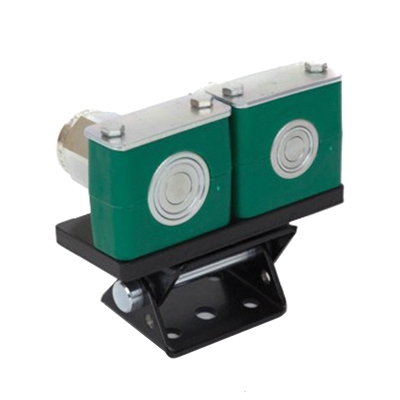

The PPC Series (push-pull coupler) is built on the a premier platform, featuring breakaway capabilities that engage when the coupler is unintentionally left coupled, preventing leakage and damage. Its clamp fixture is designed to be mounted to the structure; when pulled apart in-line with the coupler, the PPC coupler will break away. For mobile applications, the APM series nipple is recommended with this series.

Simple, easy-to-use push/pull connection
Breakaway design automatically disconnects in case of accidental disconnection of the hydraulic hose
Prevents leakage and damage

Applications: For refuse compactor/power units and dump trailer connections, snow plow equipment and agricultural implements
