Synflex® 3740-08 3740-08

Synflex® 3740-08

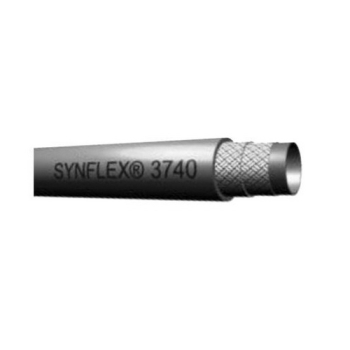

Synflex® 3740 Orange Nylon-Lined Non-Conductive Hose, 1/2 in, 138 bar

pin-int

Synflex® Non-Conductive Hose, Series: 3740, Nominal Size: 1/2 in, Dash Size: 08, 0.81 in OD, 1/2 in ID, 138 bar, SAE Rating: SAE J517, Material Construction: Nylon-Lined, Non-Perforated Polyurethane Cover, Construction: Braided Synthetic Fiber, Orange, 3 in Bend Radius, -40 deg C Low, 100 deg C High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Orange
Construction      :      Braided Synthetic Fiber
Cover Material      :      Non-Perforated Polyurethane
Dash Size      :      08
Inside Diameter      :      1/2 in
Material      :      Nylon
Material Construction      :      Nylon-Lined
Nominal Size      :      1/2 in
Outside Diameter      :      0.81 in
Pressure Rating      :      138 bar
Product Type      :      Medium-Pressure Hose
SAE Rating      :      SAE J517
Series      :      3740
Temperature High      :      100 deg C
Temperature Low      :      -40 deg C
  • SAE J517 non-conductive hose construction
  • Less than 50 uA leakage when subjected to 75000 V/ft for 5 min
  • Very flexible through temperature range
  • Non-conductive marking and color code

Applications: For aerial equipment, general hydraulic systems that may contact high voltage sources, mobile hydraulics, rescue apparatus and tools

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_3740-04_CAT.pdf
