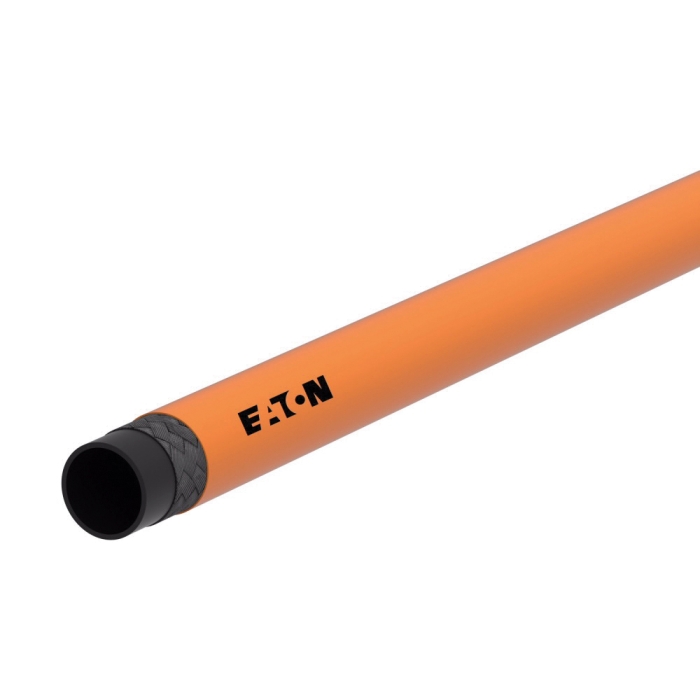

Synflex® 3TR7N Orange Nylon Medium-Pressure Non-Conductive Hydraulic Hose
The Synflex® Medium-Pressure Non-Conductive Hydraulic Hose, Series 3TR7N, is a versatile and lightweight solution for hydraulic systems requiring safety, durability, and performance. Constructed with a nylon inner tube and a polyurethane cover, this hose offers exceptional resistance to abrasion, chemicals, ozone, and UV exposure. Its 1-ply braid reinforcement provides durability and strength, supporting pressures up to 2,800 psi while maintaining a flexible 1-1/4 inch bend radius. Operating efficiently from -40°F to 212°F, the 3TR7N is ideal for general hydraulics, material handling, chemical transfer, and marine steering applications. Its thermoplastic design reduces routing force by 50%, minimizes kinking, and ensures system cleanliness, making it a dependable choice for demanding environments.
-
ARGPN: 3TR7N-16-200BX
-
-
Nominal Size:
-
Inside Diameter:
-
Length:
-
Nominal Size:
Synflex® Medium-Pressure Non-Conductive Hydraulic Hose, Series: 3TR7N, Nominal Size: 3/4 in, Dash Size: 16, 1.04 in OD, 3/4 in ID, 1 ft Length, 1000 psi, SAE Rating: SAE 100R7, Material Construction: Nylon, Polyurethane Cover, Construction: 1-Ply Braid, Orange, 7-1/2 in Bend Radius, Resistance Properties: Abrasion, Chemical, Ozone, UV, -40 deg F Low, 212 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 7-1/2 in |
| Color | : | Orange |
| Construction | : | 1-Ply Braid |
| Cover Material | : | Polyurethane |
| Dash Size | : | 16 |
| Inside Diameter | : | 3/4 in |
| Length | : | 200 ft |
| Material | : | Nylon |
| Material Construction | : | Nylon |
| Nominal Size | : | 3/4 in |
| Outside Diameter | : | 1.04 in |
| Pressure Rating | : | 1000 psi |
| Product Type | : | Hydraulic Hose |
| Resistance Properties | : | Abrasion, Chemical, Ozone, UV |
| SAE Rating | : | SAE 100R7 |
| Series | : | 3TR7N |
| Temperature High | : | 212 deg F |
| Temperature Low | : | -40 deg F |
Eaton Synflex® Optimum thermoplastic hydraulic hoses and fittings empower OEMs to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy-to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems.
- The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging
- Eaton Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking
- Ability to mold into configurations that match system design
- The new TPU and polyester cover increases abrasion-resistant by 10%
- Lift and handle heavy loads with hose power
- Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids
- Lightweight hose design drives performance efficiencies, reducing vehicle power requirements
- Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose
- Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices
- Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system
- Special reinforcements on the thermoplastic hoses help reduce machine noise
Applications: General hydraulics, material handling, chemical transfer and marine steering
