Synflex® 90312-12A000-0 90312-12A000-0

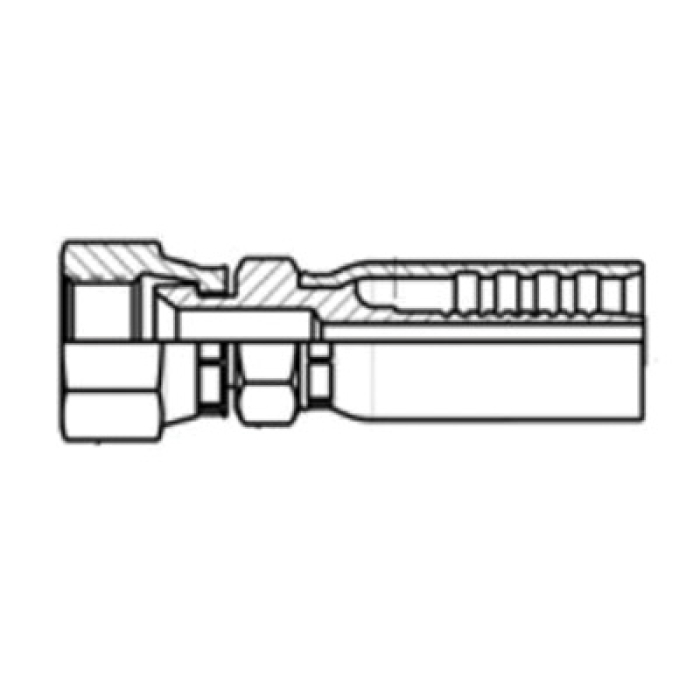

Synflex® Zinc-Plated Carbon Steel Female SAE 45 deg Swivel Permanent Swage Straight Hose Fitting

Synflex® 903 Permanent Swage Straight Hose Fitting, Hose X SAE 45 deg Swivel, Zinc-Plated, Carbon Steel

  • ARGPN: 90312-12A000-0 loading
  • Add to cart
    Add To Favorites
    • pin-int

    Synflex® Permanent Swage Straight Hose Fitting, Series: 903, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-14, Hex Size: 1-1/8 x 1-1/4 in, Cut-Off Factor: 1-3/4 in, Material Construction: Carbon Steel, Finish: Zinc-Plated, For Use With: 3630 (-03 to -12), 3R30, 3130, 37AL, 3740 (-12 to -16), 3800 (-03 to -08), 3580, 3440 (-04 to -08), and 30CT (-04 to -08) Hoses, Dimensions: 3.43 in L

    Connection Size 1      :      3/4 in
    Connection Size 2      :      3/4 in
    Connection Type      :      Hose~SAE Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      SAE 45 deg Swivel
    Cut-Off Factor      :      1-3/4 in
    Dimensions      :      3.43 in L
    Finish      :      Zinc-Plated
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      3630 (-03 to -12), 3R30, 3130, 37AL, 3740 (-12 to -16), 3800 (-03 to -08), 3580, 3440 (-04 to -08), and 30CT (-04 to -08) Hoses
    Gender 2      :      Female
    Hex Size      :      1-1/8 x 1-1/4 in
    Hose Dash Size      :      12
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      3/4 in
    Series      :      903
    Shape      :      Straight
    Thread Size 2      :      1-1/16-14
    • Permanently attached, plated steel, medium pressure hose end type
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_90304-045540-0_CAT.pdf
