Thermoid® 17813047002 TRANSPORTER150

Thermoid® 17813047002

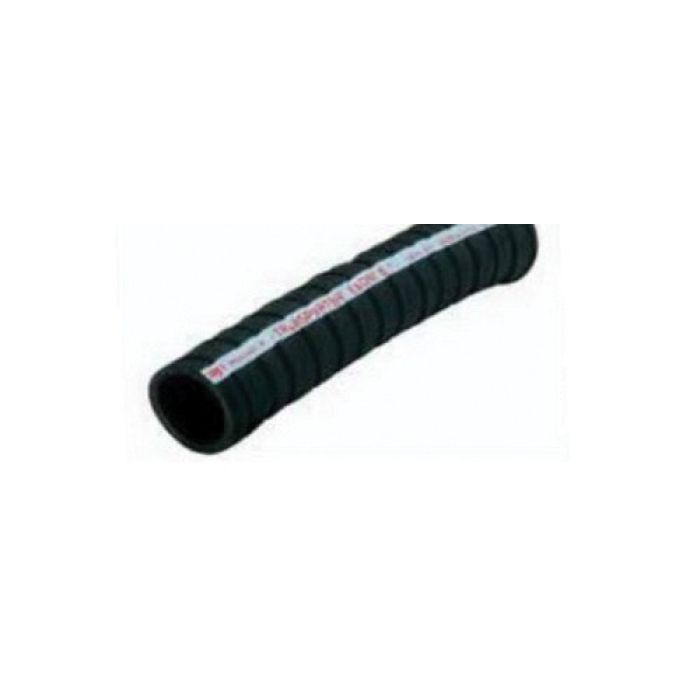

Thermoid® TRANSPORTER® EBONITE™ 17813047002 Black NBR Corrugated Tank Truck Hose, 1-1/2 in, 1 ft L, 150 psi

pin-int

Thermoid® TRANSPORTER® EBONITE™ Corrugated Tank Truck Hose, Nominal Size: 1-1/2 in, 2.06 in OD, 1-1/2 in ID, 1 ft Length, 150 psi, Material Construction: NBR, NBR/PVC Cover, Construction: 2-Ply Polyester Cord with Dual Wire Helix, Black, 3 in Bend Radius, Resistance Properties: High Oil, -30 deg F Low, 200 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Black
Construction      :      2-Ply Polyester Cord with Dual Wire Helix
Cover Material      :      NBR/PVC
Inside Diameter      :      1-1/2 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      NBR
Nominal Size      :      1-1/2 in
Outside Diameter      :      2.06 in
Pressure Rating      :      150 psi
Product Type      :      Tank Truck Hose
Resistance Properties      :      High Oil
Temperature High      :      200 deg F
Temperature Low      :      -30 deg F
  • The Transporter® Ebonite™ corrugated tank truck is recommended for hydrocarbons with aromatic content up to 55% maximum, fats, greases, animal oil, vegetable oil, hydraulic fluid and a wide range of chemicals
  • It features a flat corrugated NBR/PVC cover which is ideal for those applications where flexibility is important
  • Full vacuum-rated
  • Made in USA
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Thermoid_17813047002_SS.pdf
