Thermoid® 17813057002 EBONITE150

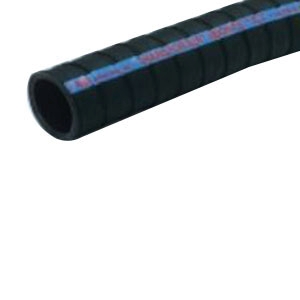

Thermoid® TRANSPORTER® EBONITE™ LT Black NBR Low-Temperature Petroleum Hose

Thermoid® TRANSPORTER® EBONITE™ LT 17813057002 Black NBR Low-Temperature Petroleum Hose, 1-1/2 in, 1 ft L, 150 psi

  • ARGPN: EBONITE150 loading
pin-int

Thermoid® TRANSPORTER® EBONITE™ LT Low-Temperature Petroleum Hose, Nominal Size: 1-1/2 in, 2.06 in OD, 1-1/2 in ID, 1 ft Length, 150 psi, Material Construction: NBR, NBR/PVC Cover, Construction: 2-Ply Polyester Cord with Dual Wire Helix, Black, 3 in Bend Radius, Resistance Properties: Medium High Oil, -65 deg F Low, 180 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Black
Construction      :      2-Ply Polyester Cord with Dual Wire Helix
Cover Material      :      NBR/PVC
Inside Diameter      :      1-1/2 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      NBR
Nominal Size      :      1-1/2 in
Outside Diameter      :      2.06 in
Pressure Rating      :      150 psi
Product Type      :      Petroleum Hose
Resistance Properties      :      Medium High Oil
Sub Brand      :      TRANSPORTER® EBONITE™ LT
Temperature High      :      180 deg F
Temperature Low      :      -65 deg F
  • This hose is designed to handle suction and discharge applications
  • It is used to convey gasoline, distilled kerosene, diesel and other fuels with a maximum aromatic content of 30% to -65 deg F
  • Featuring a flat corrugated NBR cover, it is a benefit in applications where flexibility and weight are important
  • The reinforcement of two-plies of polyester cord with a dual wire helix enables this hose to be rated at full vacuum
  • Made in USA

Applications: For tank truck, tank car and bulk stations

  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Thermoid_17813057002_SS.pdf
