Trident Marine 365-0580 365-0580

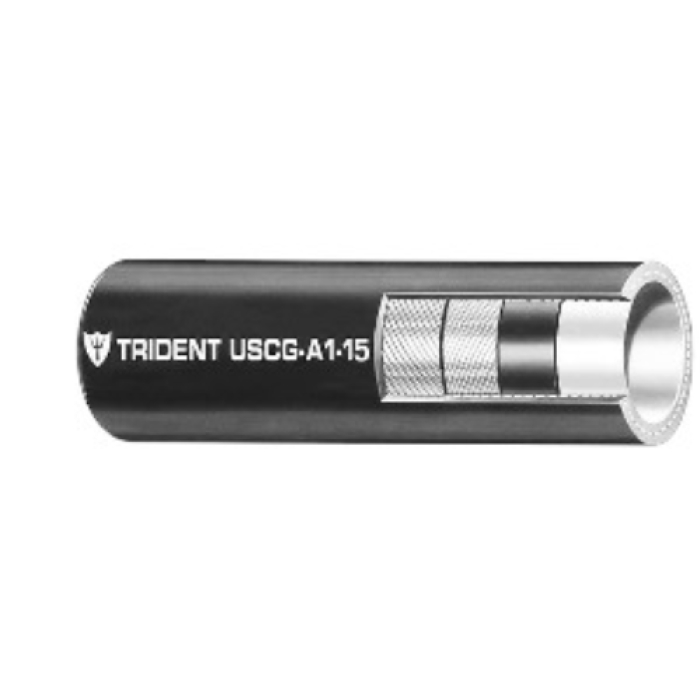

Trident Barrier Lined A1-15 Fuel Hose

Trident Barrier Lined A1-15 Fuel Hose, Series 365, is designed for both gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to B100). This hose features a unique internal nylon barrier liner that prevents fuel from direct contact with the rubber, enhancing resistance to permeation, aging, fire, heat, cold, and ozone. It offers excellent flexibility and bendability, making it suitable for various marine fuel system applications.

  • Add to cart
    Add To Favorites
    • pin-int

    Trident Barrier Lined A1-15 Fuel Hose, Series: 365, Nominal Size: 5/8 in, 1 in OD, 5/8 n ID, 1 ft Length, 100 psi, Material Construction: NBR/PVC blend Construction: Polyester 2 Spiral, Black, Resistance Properties: Flame, Ozone, -20 deg F Low, 212 deg F High

    Color      :      Black
    Construction      :      2-Ply High-Tensile Textile Spirals
    Cover Material      :      OZO
    Industry Category      :      Marine Fuel Hoses
    Inside Diameter      :      0.625 in
    Length      :      1 ft
    Material      :      NBR PVC BLEND
    Material Construction      :      NBR PVC BLEND
    Nominal Size      :      5/8 in
    Outside Diameter      :      1 in
    Pressure Rating      :      100 psi
    Product Type      :      Fuel Feed and Vent Hose
    Resistance Properties      :      Flame, Ozone
    Series      :      360
    Temperature High      :      212 deg F
    Temperature Low      :      -20 deg F
    • The barrier construction provides the lowest permeation rating available for any marine fuel hose
    • Handles gasoline, diesel and alcohol blended fuels
    • The flame-resistant cover is designed for enclosed engine compartment applications
    • Compatible with ethanol fuel-grades E10, E15 to E85
    • Compatible with bio-diesel fuel-grades all-grades up to B100

    Applications: For used in a feed or vent application

    • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Trident Barrier Lined A1-15 Fuel Fuel Feed and Vent.pdf
