Weatherhead® 06906E-606 06906E-606

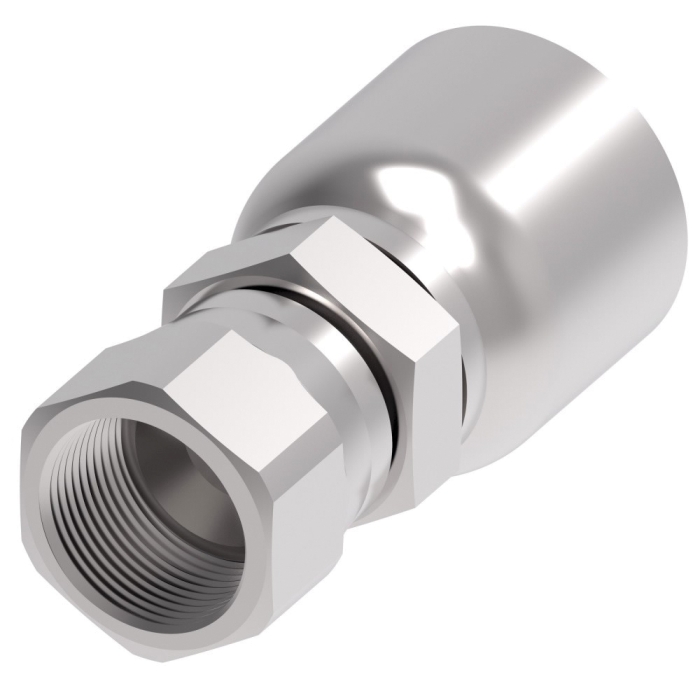

Weatherhead® 069 E Zinc Clear Trivalent Chromate Carbon Steel Female 37 deg JIC Swivel Crimp Straight Hose Fitting

Weatherhead® 069 E Crimp Straight Hose Fitting, Hose X 37 deg JIC Swivel, Zinc Clear Trivalent Chromate, Carbon Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Weatherhead® Crimp Straight Hose Fitting, Series: 069 E, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 9/16 x 11/16 in, 5000 psi, Cut-Off Factor: 1.19 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H059, H069, H166, H169, H229, H239, H366, and H569 Hoses, Dimensions: 2.27 in L x 0.82 in W x 0.82 in H, Dimension Standards: SAE 100R5

    Connection Size 1      :      3/8 in
    Connection Size 2      :      3/8 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      37 deg JIC Swivel
    Cut-Off Factor      :      1.19 in
    Dimension Standards      :      SAE 100R5
    Dimensions      :      2.27 in L x 0.82 in W x 0.82 in H
    Finish      :      Zinc Clear Trivalent Chromate
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      H059, H069, H166, H169, H229, H239, H366, and H569 Hoses
    Gender 1      :      Female
    Gender 2      :      Female
    Hex Size      :      9/16 x 11/16 in
    Hose Dash Size      :      06
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Nominal Size      :      3/8 in
    Pressure Rating      :      5000 psi
    Series      :      069 E
    Shape      :      Straight
    Thread Size 2      :      9/16-18

    Applications: General-purpose low and medium-pressure hydraulics, truck and off-road vehicle applications
