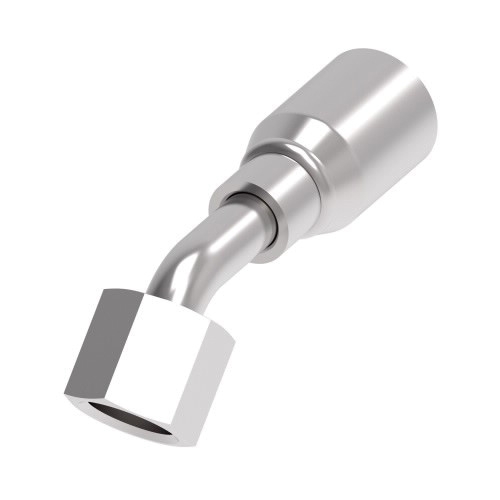

Weatherhead® 069 E Zinc Clear Trivalent Chromate Carbon Steel Female SAE 45 deg Swivel Crimp Hose 45 deg Tube Elbow
Weatherhead® 069 E Crimp Hose 45 deg Tube Elbow, Hose X SAE 45 deg Swivel, Zinc Clear Trivalent Chromate, Carbon Steel
-
ARGPN: 06906E-486
-
-
Connection Size 1:
-
Connection Size 2:
-
Nominal Size:
-
Connection Size 1:
Weatherhead® Crimp Hose 45 deg Tube Elbow, Series: 069 E, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 3/4 in, Cut-Off Factor: 1.69 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: H059, H069, H166, H169, H229, H239, H366, and H569 Hoses, Dimensions: 3.585 in L x 0.84 in W x 1.625 in H, Dimension Standards: SAE 100R5
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type | : | Hose~SAE Female Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | SAE 45 deg Swivel |
| Cut-Off Factor | : | 1.69 in |
| Dimension Standards | : | SAE 100R5 |
| Dimensions | : | 3.585 in L x 0.84 in W x 1.625 in H |
| Finish | : | Zinc Clear Trivalent Chromate |
| Fitting Type | : | 45 deg Elbow |
| For Use With | : | H059, H069, H166, H169, H229, H239, H366, and H569 Hoses |
| Gender 1 | : | Female |
| Gender 2 | : | Female |
| Hex Size | : | 3/4 in |
| Hose Dash Size | : | 06 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Nominal Size | : | 3/8 in |
| Series | : | 069 E |
| Shape | : | 45 deg Elbow |
| Thread Size 2 | : | 5/8-18 |
Applications: General-purpose low and medium-pressure hydraulics, truck and off-road vehicle applications
